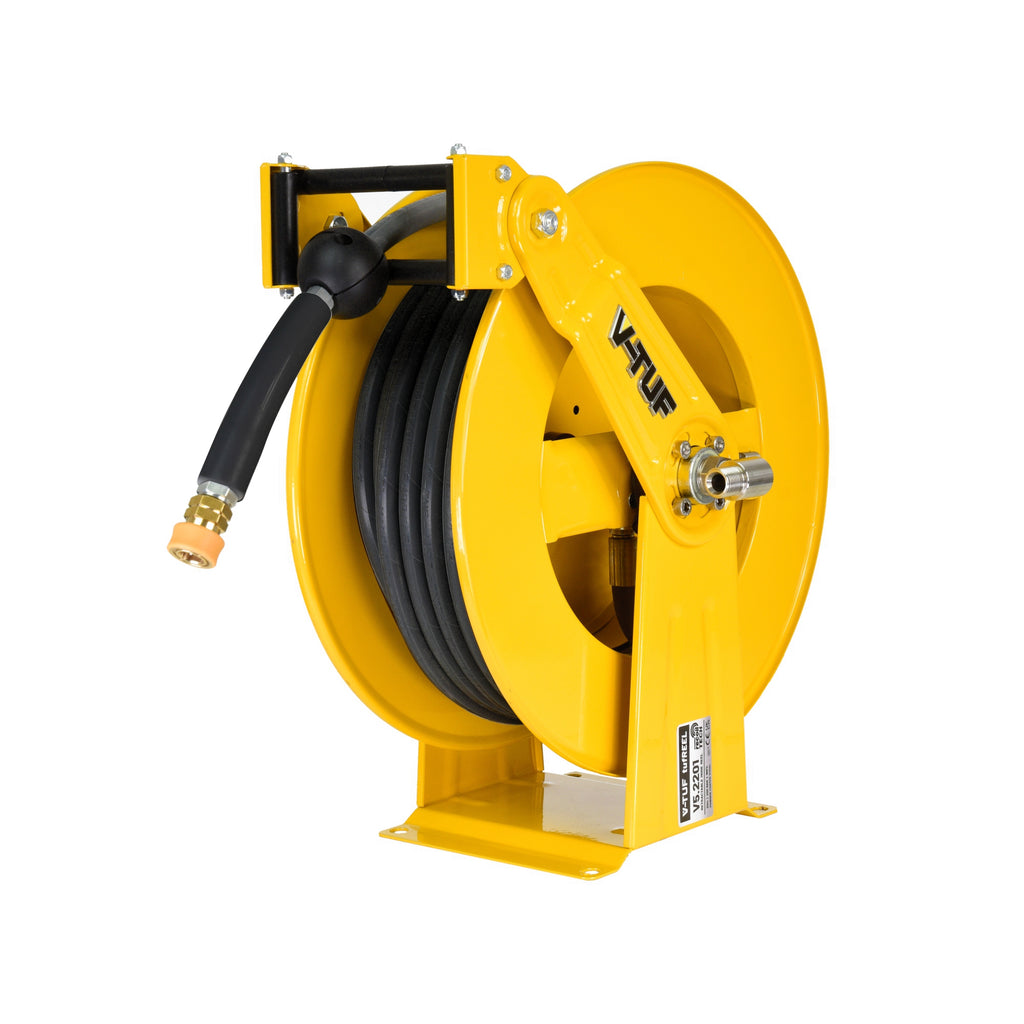

20M V-TUF Retractable tufREEL - Powder Coated Steel + 20M WASHFLEX BLACK 3/8 2W HOSE MSQ KIT & 2m PATCH HOSE

V-TUF commercial and contractor specification, self-retractable 20m hose reel of Yellow Powder Coated Steel construction and proven design. The latest model offers you the following advantages: Better build quality thicker, stronger arms Nylon Ratchet lasts longer than the previous steel one Stainless steel swivel much better than plated steel Made for hose so the internal recoil spring is toughened 4 roller hose guide gives more reach and tougher design than the 2 roller style The V5.2201 hose reel has a maximum rated pressure of 600 BAR. It comes standard with a swivel of a working pressure of 200 Bar (3000PSI), an optional 400 BAR swivel can be fitted. The uniquely constructed 4 ROLLER V-TUF MULTI-ADJUSTABLE HOSE CARE GUIDE that reduces the need for swivel mount brackets as the hose can be pulled from any angle. This reduces wear and the space taken up in the hose reel area. This V5.2201 reel is the replacement for the previous WFHR20PC reel. Please note: the reel comes without hose. If you wish to order a hose – Please select the hose and recommended products from the detail below / scroll down & select a hose and recommended fittings from the RELATED PRODUCTS (below):
Please note: the reel comes without hose. If you wish to order a hose – Please select the hose and recommended products from the detail below / scroll down & select a hose and recommended fittings from the RELATED PRODUCTS (below)
Recommended products (If you wish to order a unit with hose): 1x WFB23820FFYKB 20m BLUE HOSE 3/8F x 3/8F or for a more flexible hose you can use WFB51620FFYKB 20m BLUE HOSE 3/8F x 3/8F ; 1x MB6/MB8 1/2M x 3/8M adaptor. If you would like a connecter hose order from your pump to reel: 1 x MB6/FB8 ; 2 x W6 and WFB23805FFYK 5m BLUE HOSE 3/8F x 3/8F or any other hose selection. Please note: NO more than 20m of hose must be used on the reel drum, as this will cause damage to the recoil spring.
Dimensions: Height: 560mm ; Width (including swivel): 260mm ; Length (hose drum diameter) : 440mm
1/2 BSP female INLET
Hose drum inlet: 1/2 BSP female and a ½ male x ½ male adaptor supplied with ½ brass sealing washer. (It is advisable to fit a hose with s 3/8BSP F to drum with a MB6/MB8 3/8m x ½ m nipple and 1x W6 3/8 sealing washer).
Please note: Due to product development, specifications can change without notice and images are for illustration only. E&OE
