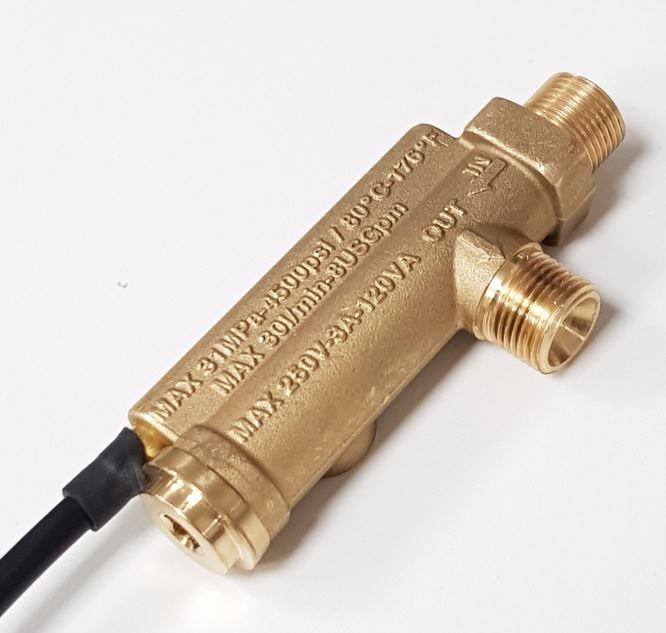

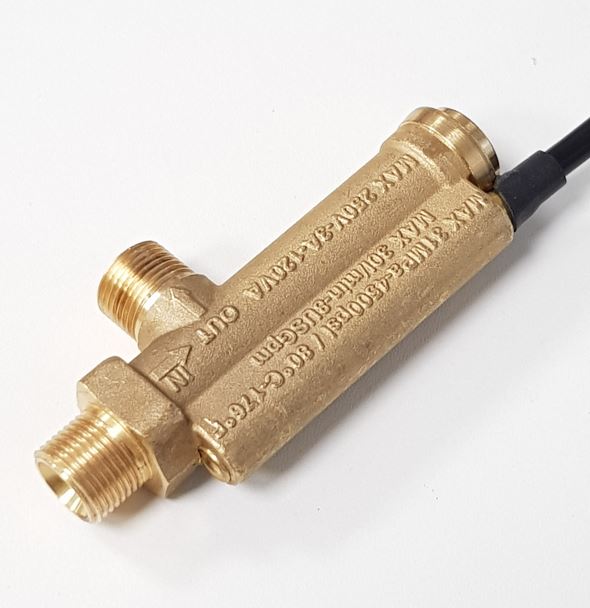

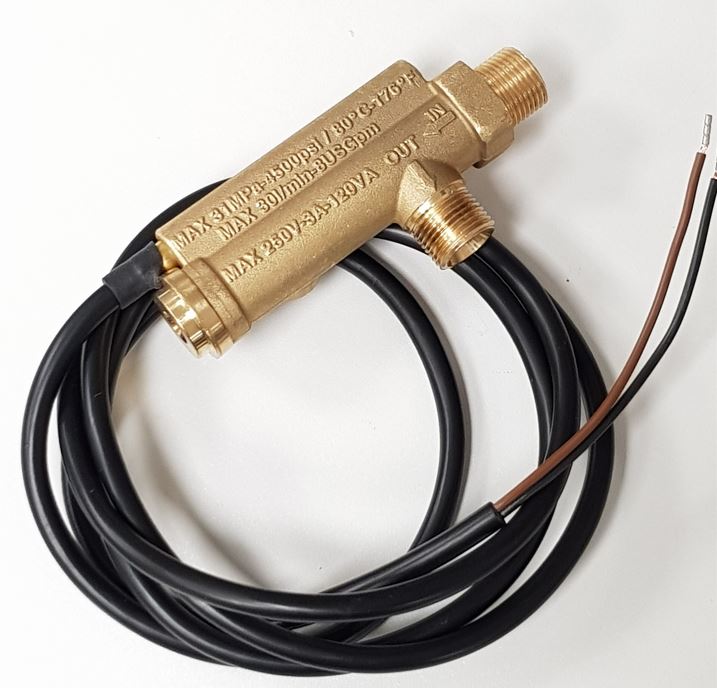

FLOW SWITCH HORIZONTAL OR VERTICAL WORKING POSITION - BRASS 90deg 3/8M 3/8M with lead - C3.042

Flow Switch Brass 90° 3/8"M x 3/8"M with Lead (C3.042) is a brass inline flow switch that breaks a circuit when water flow drops below threshold, used to protect pressure washer pumps and burner systems from running dry. Can be mounted horizontally or vertically and is rated to 310 Bar / 4500 PSI with a maximum temperature of 90°C.

For: Low-flow circuit protection on V-TUF hot and cold water pressure washers, pump sets, and industrial cleaning systems.

Key specifications:

• Connections: 3/8" BSP male x 3/8" BSP male (90° body)
• Material: Brass
• Max pressure: 310 Bar (4500 PSI)
• Max temperature: 90°C
• Mount orientation: Horizontal or vertical
• Output: Lead wire included

What's included:

• 1x C3.042 flow switch with lead

Important: Use PTFE tape on both BSP male threads. Wire lead to control circuit — do not exceed rated pressure or temperature.

Support: See the Flow & Pressure Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.

Genuine V-TUF part, supplied from our Lincoln warehouse.
