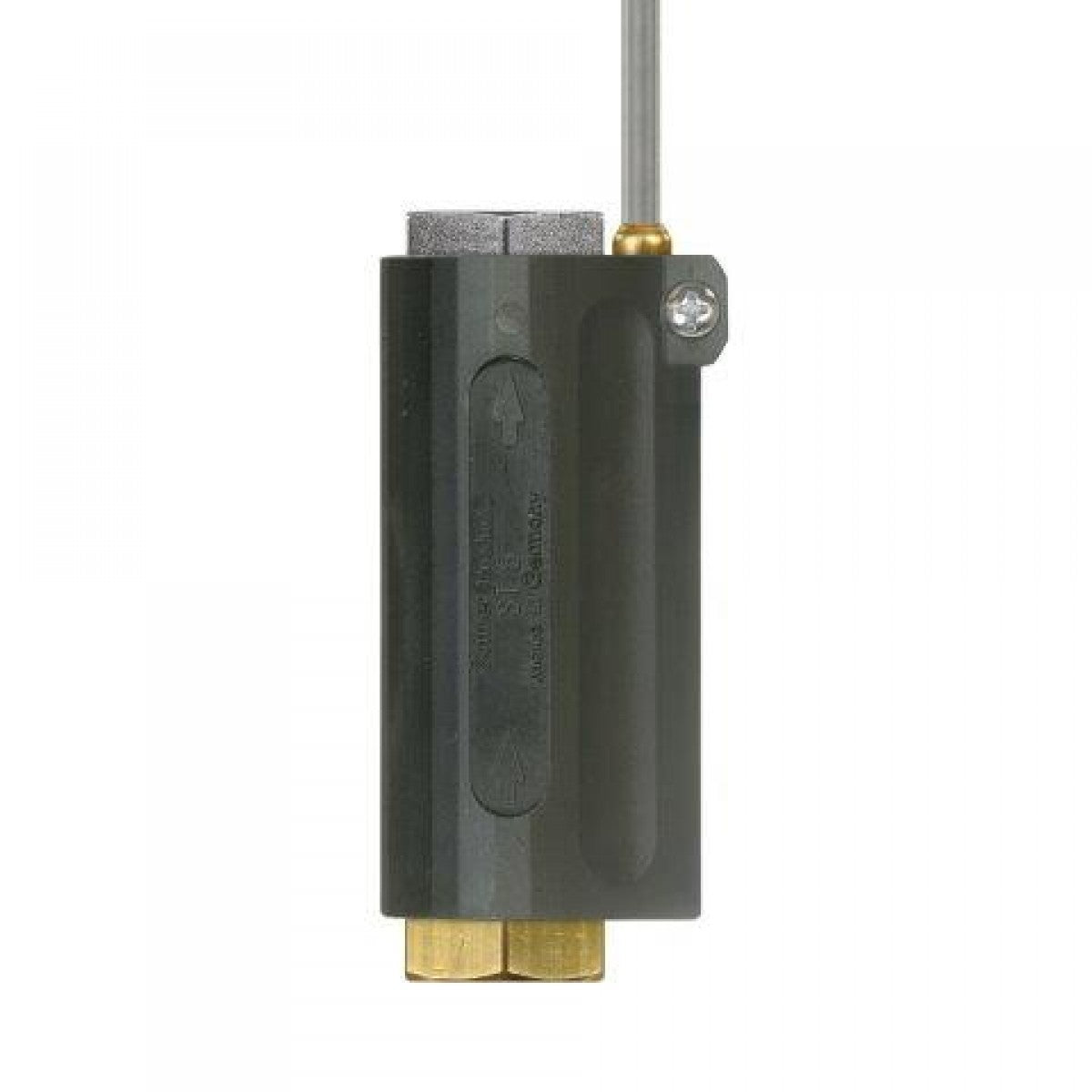

FLOW SWITCH - VERTICAL WORKING POSITION - C3.031
Description
Flow Switch Vertical Working Position Reed Switch 3/8"F x 3/8"F (C3.031) is a reed switch flow switch for vertical mounting only, rated to 250 Bar, 30 L/min, and 80°C, with 3/8" BSP female inlet and outlet. Activates when sufficient flow passes through — used to control burners and motors on hot water pressure washers.
For: Vertical flow sensing on hot water pressure washer burner and motor control circuits rated up to 250 Bar.
Key specifications:
- Mount: Vertical only
- Max pressure: 250 Bar
- Max flow: 30 L/min
- Max temperature: 80°C
- Connections: 3/8" BSP female x 3/8" BSP female
- Switch type: Reed switch
What's included:
- 1x C3.031 vertical flow switch
Important: Vertical mounting only. For horizontal or vertical 90° brass flow switch see C3.042.
Support: See the Flow & Pressure Spare Parts page, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
