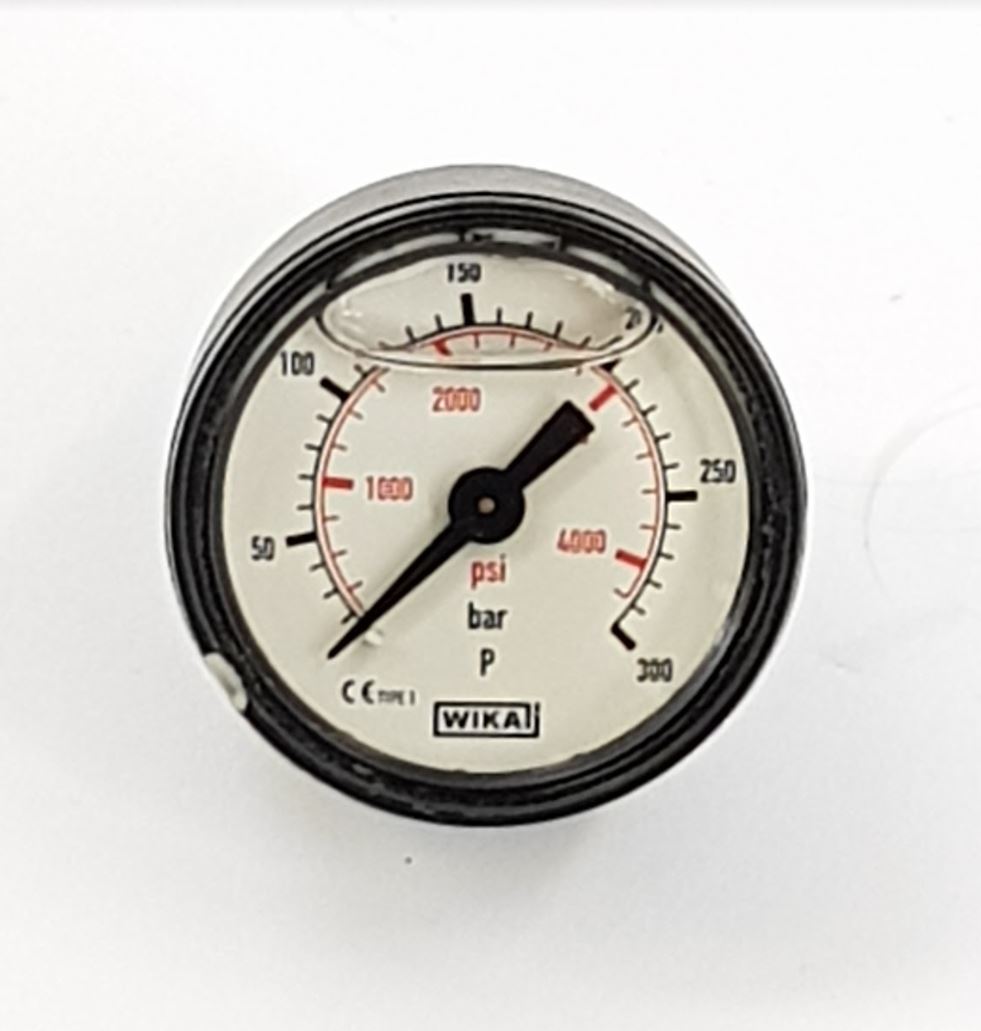

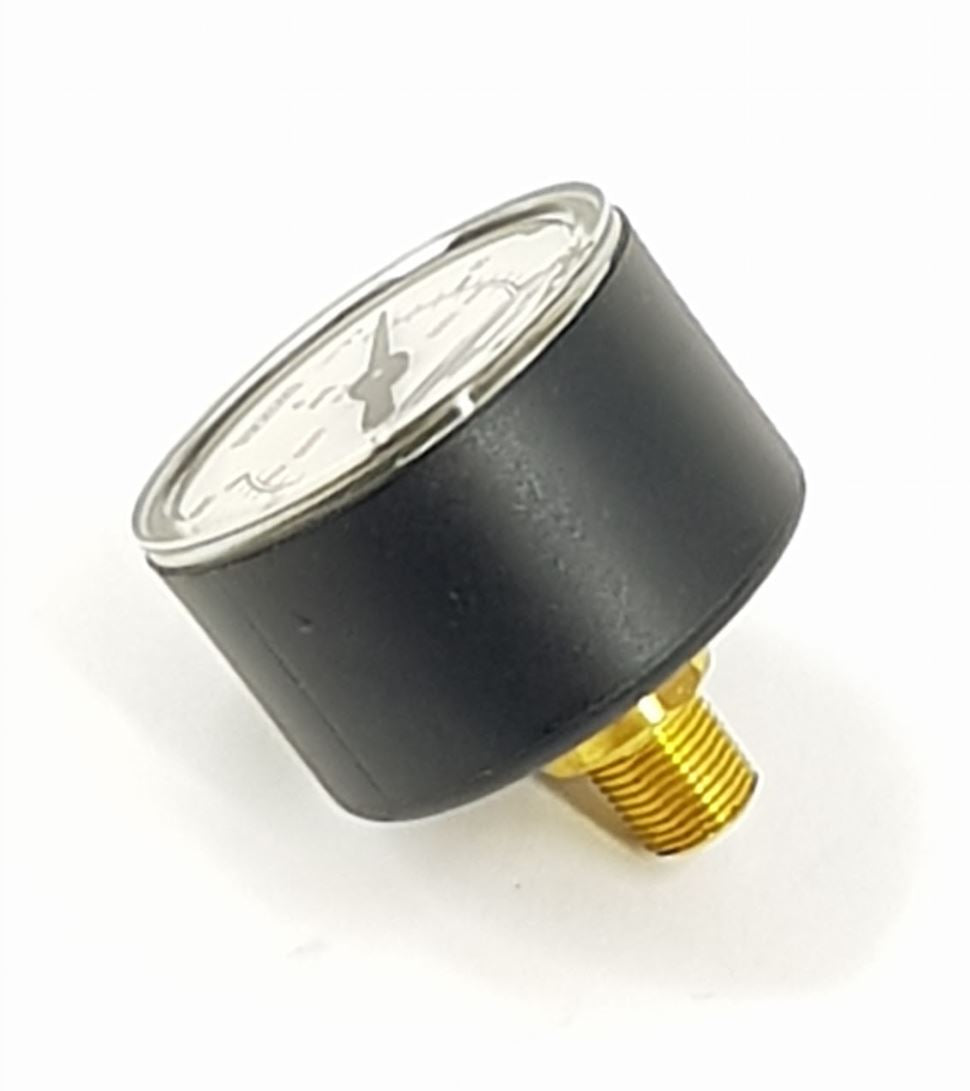

PRESSURE GAUGE 41mm diameter - 0 to 300 BAR 1/8M BACK ENTRY - C6.030

Pressure Gauge 41mm 0–300 Bar 1/8"M Back Entry Glycerine Filled (C6.030) is a 41mm diameter glycerine-filled pressure gauge rated 0–300 Bar with 1/8" BSP tapered male back entry thread and panel mounting kit. The glycerine fill dampens needle movement for stable readings on pulsating pressure systems.

For: Pressure monitoring on unloader valves, pump sets, and pressure washer systems rated up to 300 Bar.

Key specifications:

• Diameter: 41mm
• Range: 0–300 Bar
• Inlet: 1/8" BSP tapered male (rear entry)
• Fill: Glycerine
• Includes: Panel mounting kit

What's included:

• 1x C6.030 pressure gauge with panel mounting kit

Important: Use PTFE tape on 1/8" BSP tapered thread. For 63mm 0–400 Bar version see C6.240.

Support: See the Flow & Pressure Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.

Genuine V-TUF part, supplied from our Lincoln warehouse.
