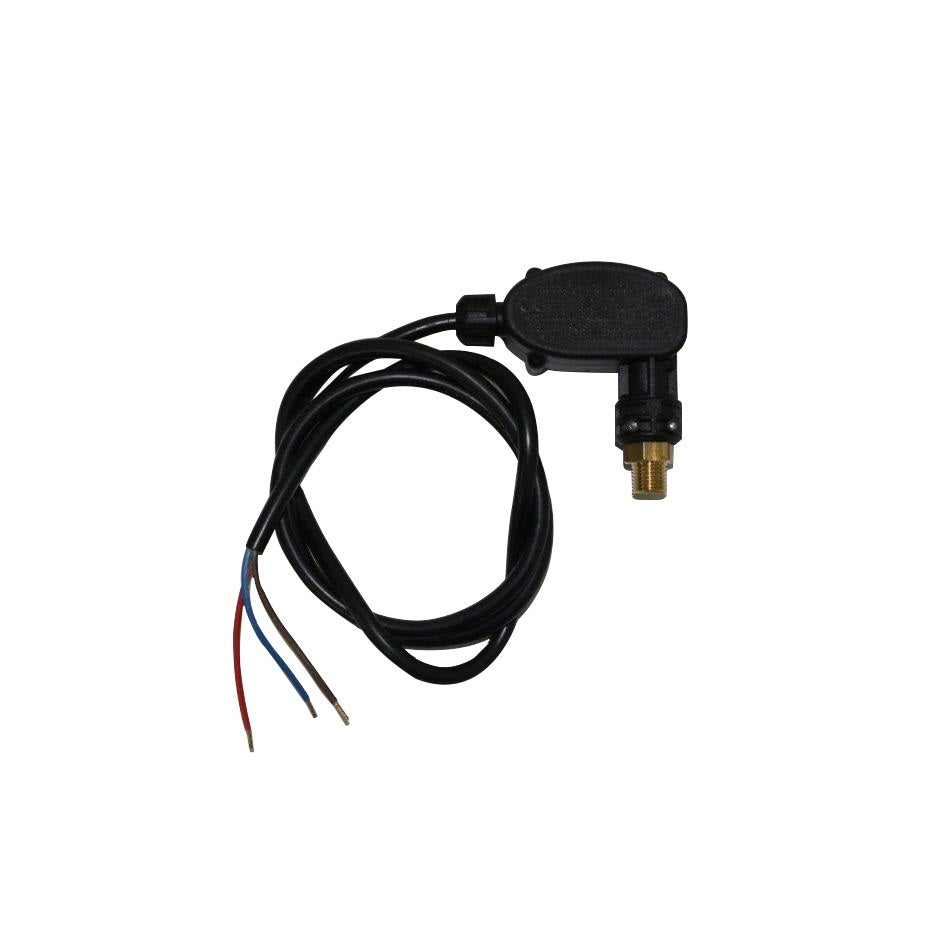

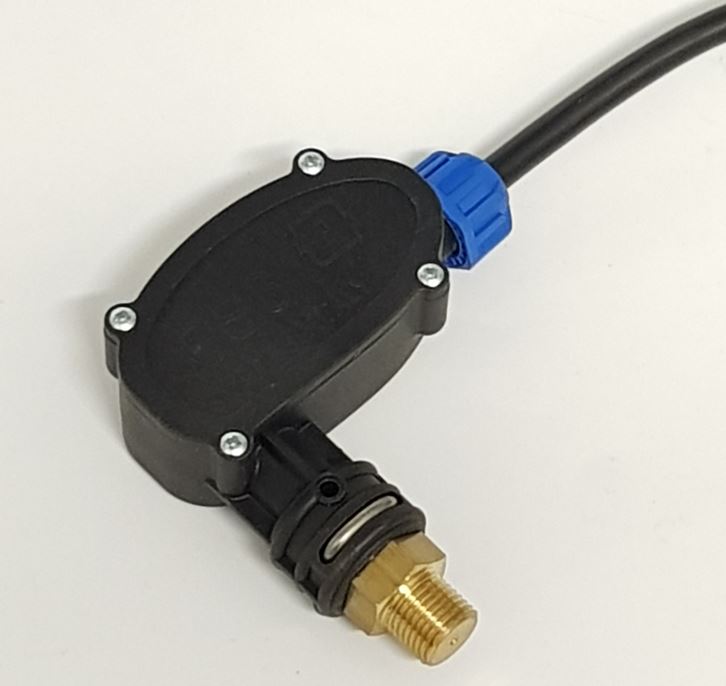

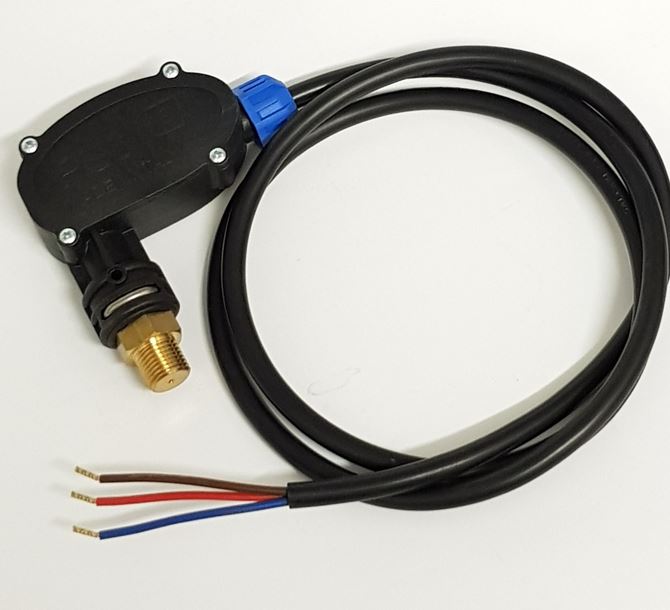

PRESSURE SWITCH - LARGE 15 BAR/16A 3 CORE LEAD - C0.115

The C0.115 is a heavy duty (15 bar activated) PS6 pressure switch with a serviceable pin (quick lube feature - no tools - just remove U clip) and replaceable 15 AMP micro switch (order code: C0.500 ). 1 meter long cable.
An ideal as a direct replacement pressure switch for machines with the small C0.040M14 5 amp switch.
Please note: If you use as direct replacement for MTM or M pressure switches you must connect the blue wire where the red was connected and the red wire where the blue was connected.
The C0.115 comes standard with male BSP thread. (If you need a 3/8 BSP male thread, order the switch with MFB06/04 BRASS BUSH)
