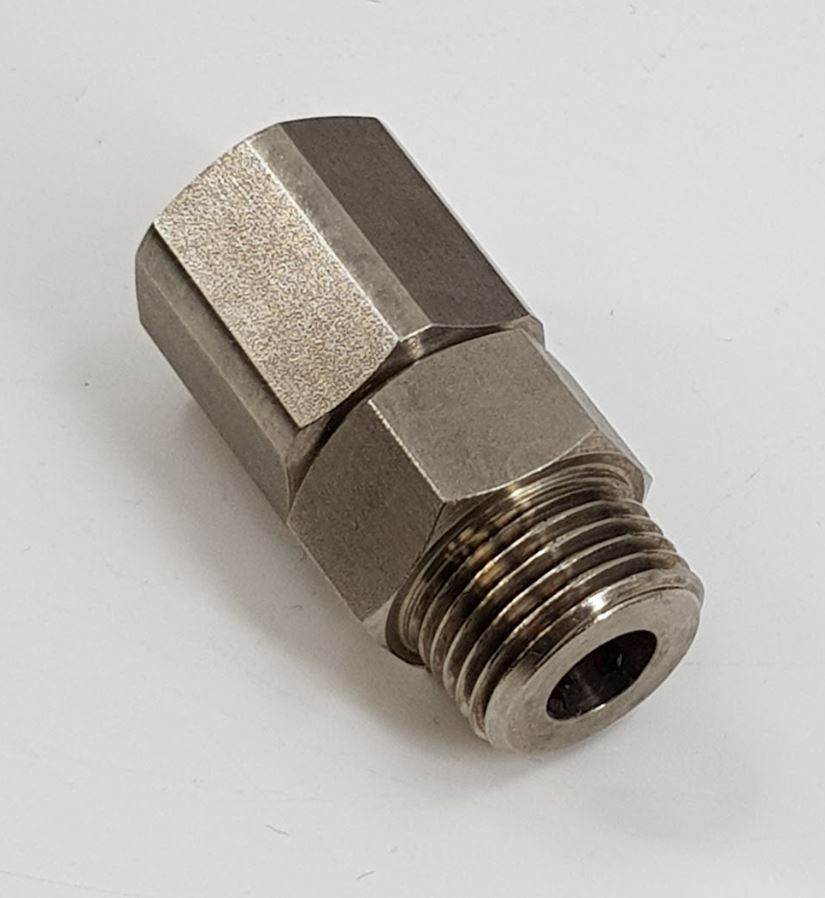

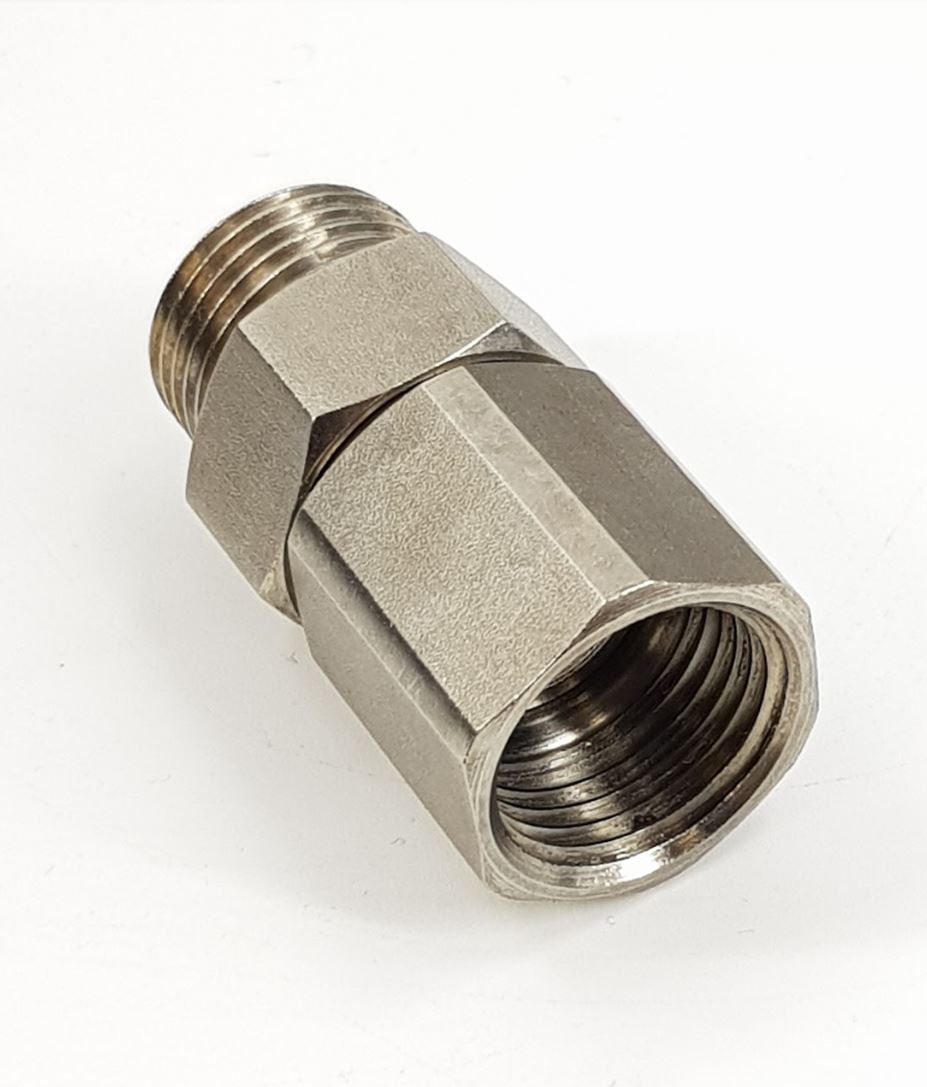

SWIVEL STRAIGHT - COMPACT STAINLESS STEEL 1/2M 1/2F - B5.312C
Description
Compact Stainless Steel Swivel Straight 1/2"M x 1/2"F 220 Bar (B5.312C) is a compact stainless steel straight swivel rated to 220 Bar and 90°C, with 1/2" BSP male inlet (21mm OD) and 1/2" BSP female outlet (19mm ID). Prevents hose twist in tight-space applications where a full-length swivel won't fit.
For: High pressure hose connections in confined spaces, hot water environments, and chemical applications requiring a compact swivel.
Key specifications:
- Inlet: 1/2" BSP male (21mm OD)
- Outlet: 1/2" BSP female (19mm ID)
- Max pressure: 220 Bar
- Max temperature: 90°C
- Material: Stainless steel
- Length: 56mm (compact)
What's included:
- 1x compact stainless steel swivel
Important: Rated to 220 Bar max. For full-length stainless swivel see B5.312. Use PTFE tape on male thread.
Support: See the Couplings & Adaptors Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
