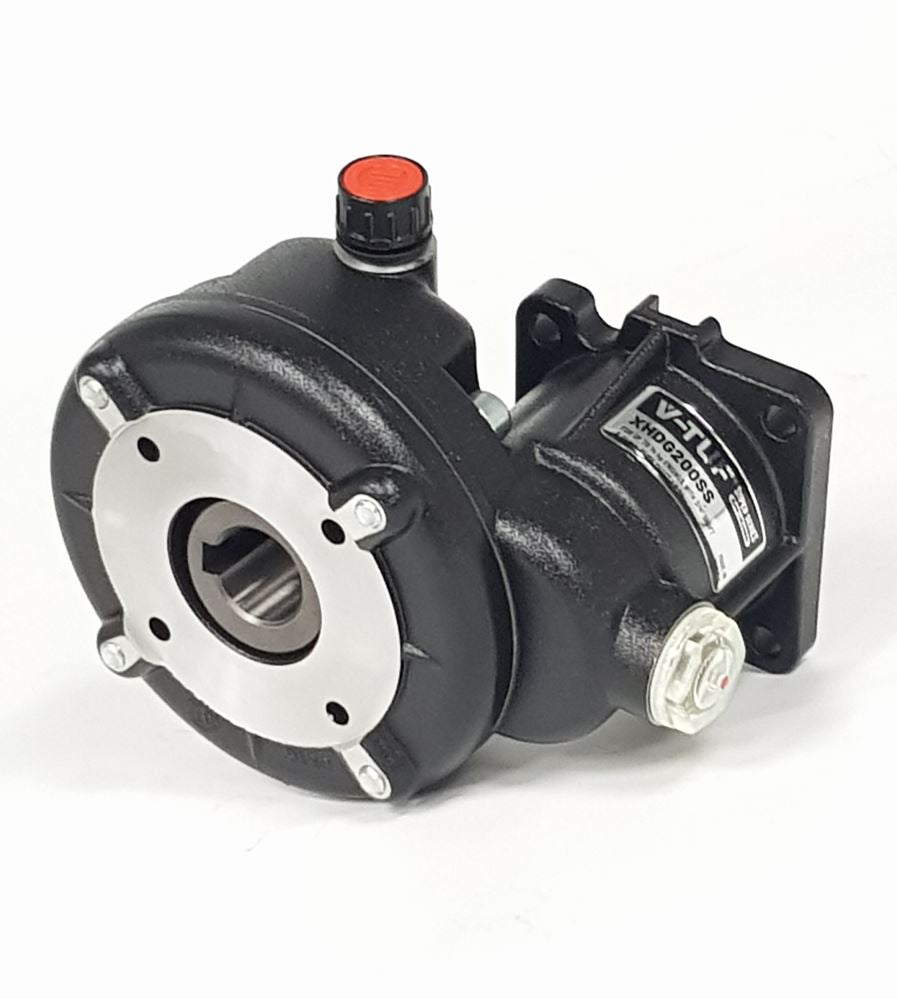

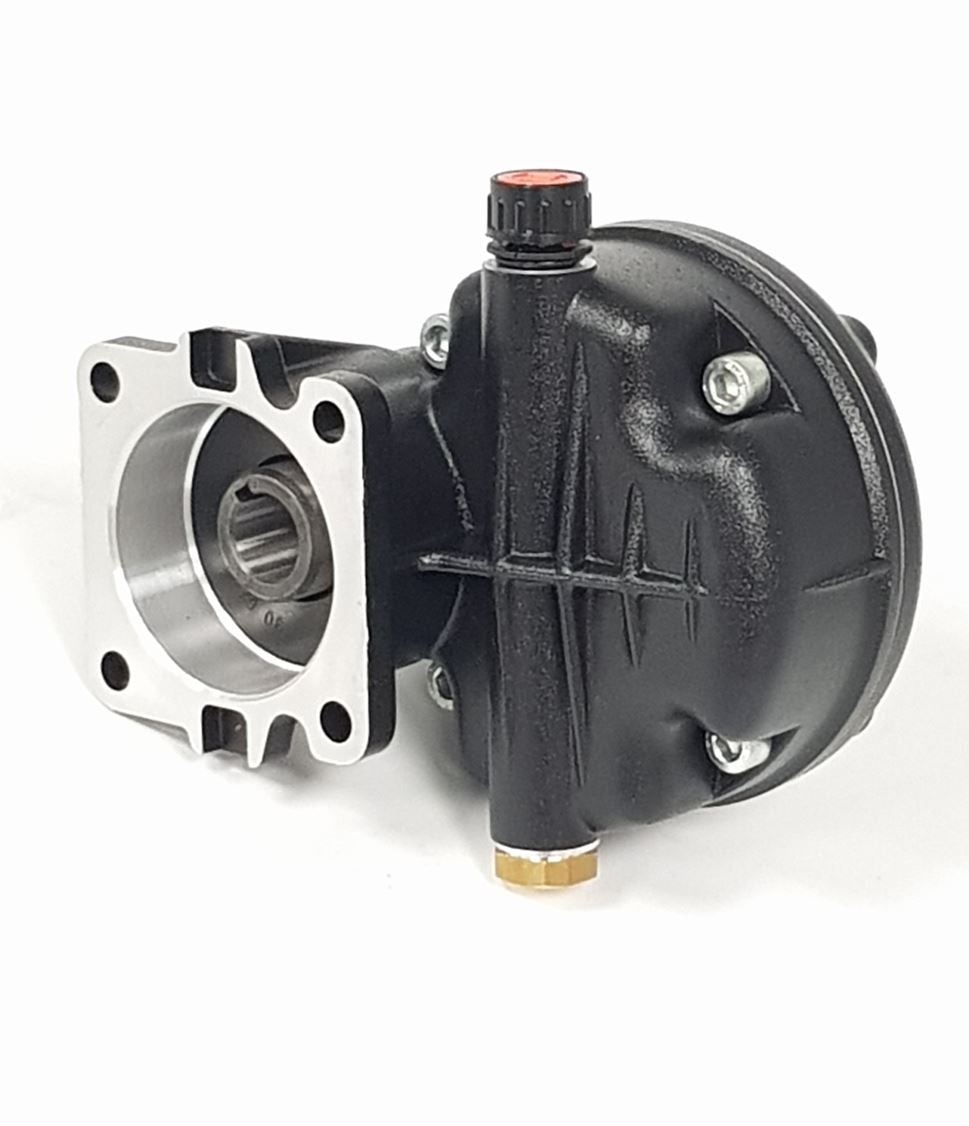

GEARBOX - V-TUF SUPER SERIES XHDG200SS 3/4" HOLLOW SHAFT FOR UP TO 7HP ENGINES & 24MM PUMP SHAFT 1:2.3 - XHDG200SS
GEARBOX - V-TUF SUPER SERIES XHDG200SS 3/4" HOLLOW SHAFT FOR UP TO 7HP ENGINES & 24MM PUMP SHAFT 1:2.3 - XHDG200SS
Key Features
- 3/4" HOLLOW SHAFT GEARBOX – V-TUF Super Series reduction gearbox for engines up to 7HP
- 24MM PUMP SHAFT OUTPUT – 1:2.3 ratio, compatible with XHDM300SS and XHDM350SS pumps
- DIRECT ENGINE COUPLING – fits 3/4" horizontal shaft petrol and diesel engines
- BUILT FOR HEAVY USE – reduces pump wear by matching engine speed to correct pump RPM
- GENUINE V-TUF GEARBOX – supplied from our Lincoln warehouse, fill with gearbox oil before first use
Description
Gearbox - V-TUF Super Series XHDG200SS, 3/4" Hollow Shaft for up to 7HP Engines, 24mm Pump Shaft, 1:2.3 Ratio (XHDG200SS) is the V-TUF Super Series reduction gearbox with 3/4" hollow shaft input for engines up to 7HP and 24mm solid pump shaft output at a 1:2.3 ratio.
For: Engine-driven pressure washing systems using V-TUF XHDM300SS/XHDM350SS pumps with petrol or diesel engines up to 7HP.
Key specifications:
- Shaft input: 3/4" hollow (for engine crankshaft)
- Shaft output: 24mm (for compatible pumps)
- Ratio: 1:2.3
- Max engine HP: 7HP
What's included:
- 1x XHDG200SS gearbox
Important: Fill with correct gearbox oil before first use. Do not exceed 7HP engine rating. Confirm 3/4" hollow shaft matches your engine crankshaft before ordering. For 1" shaft version up to 31HP see XHDG500SS.
Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
Specifications
- Fuel type
- Petrol
- Shaft size
- 3/4" hollow input / 24mm output
