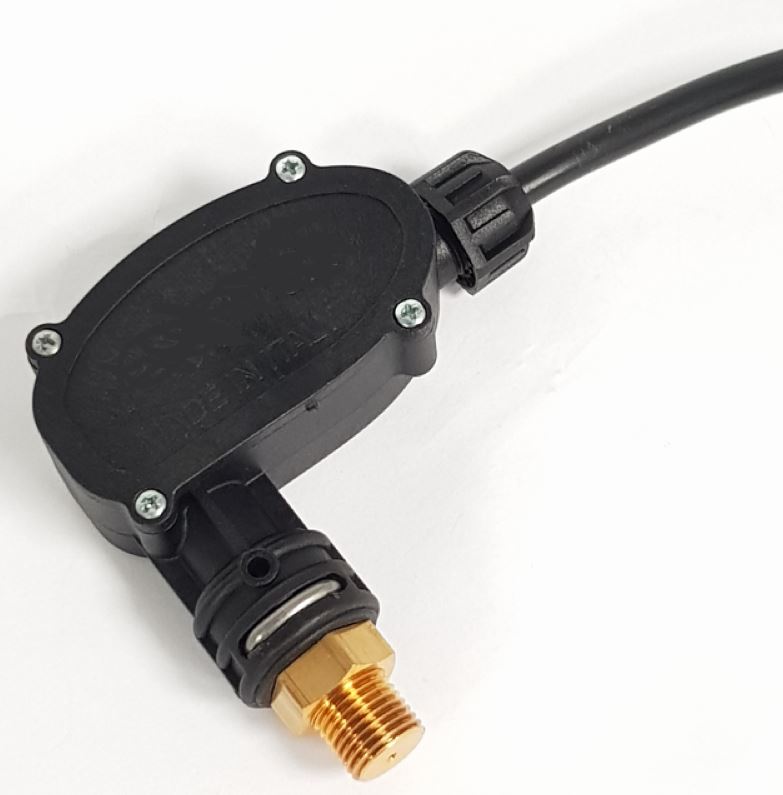

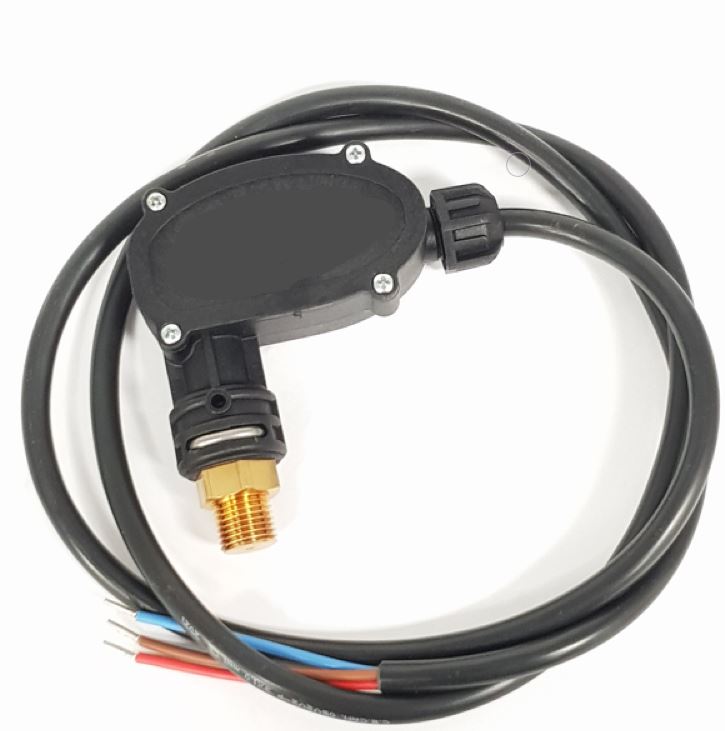

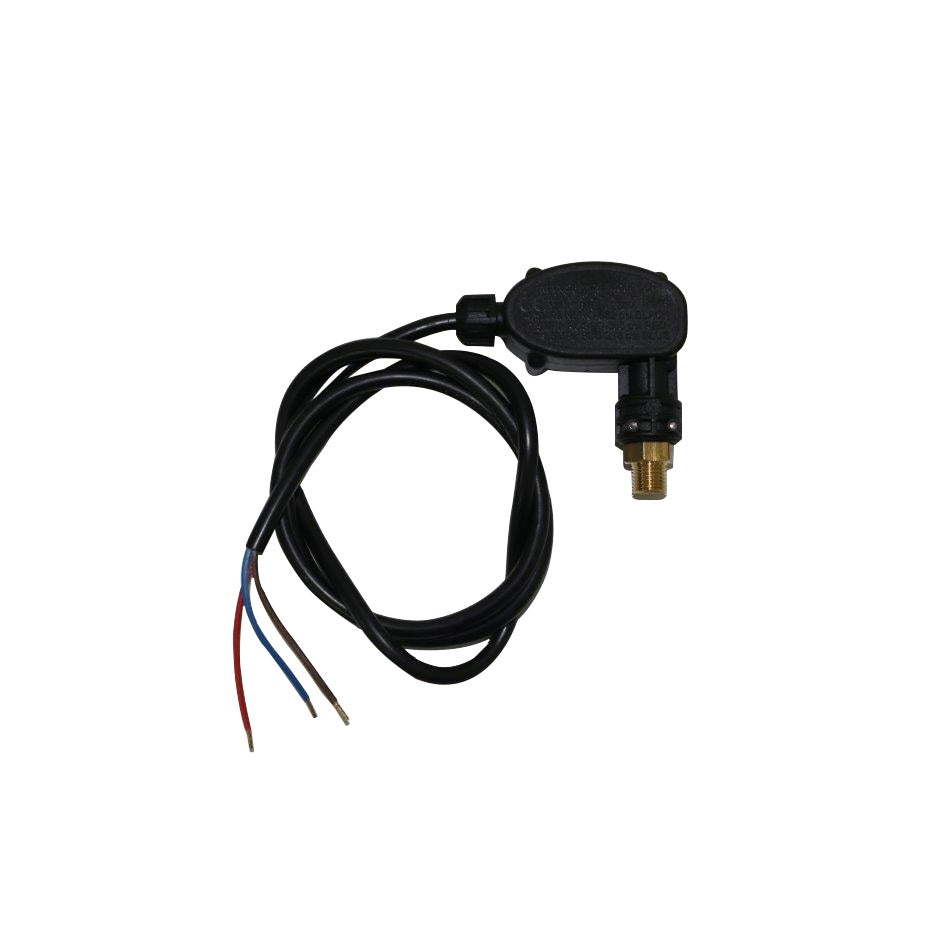

PRESSURE SWITCH - LARGE 45 BAR/16A 3 CORE LEAD - C0.140
PRESSURE SWITCH - LARGE 45 BAR/16A 3 CORE LEAD - C0.140
Key Features
- GENUINE V-TUF PRESSURE SWITCH – large, heavy duty, 40 Bar activation, 16A
- SERVICEABLE PIN – quick-lube feature, no tools required
- REPLACEABLE MICRO SWITCH – 20A micro switch (C0.500) available separately
- FOR MALE THREAD VERSION – see C0.140M14
- GENUINE V-TUF PART – supplied from our Lincoln warehouse with full UK-based service support
Description
Pressure Switch Large 45 Bar / 16A 3-Core Lead (C0.140) is a V-TUF PS6 heavy-duty pressure switch activating at 40 Bar, rated 16A, with serviceable pin (quick-lube, no tools — remove U-clip) and replaceable 20A micro switch (C0.500). With 3-core lead for direct motor starter connection. Ideal for total-stop on electric pressure washers.
For: Total-stop control on V-TUF and compatible electric pressure washers requiring a heavy-duty 16A pressure switch.
Key specifications:
- Activation pressure: 40 Bar
- Rating: 16 amp
- Lead: 3-core
- Serviceable pin: Yes (U-clip, no tools)
- Replaceable micro switch: C0.500 (20A)
What's included:
- 1x C0.140 pressure switch with 3-core lead
Important: Replacement micro switch: C0.500. For male thread version see C0.140M14.
Support: See the Flow & Pressure Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
Specifications
- Working Pressure (Bar)
- 40
