PUMP & GEARBOX - V-TUF SUPER SERIES XHDM500SSGB 1" HOLLOW SHAFT 15L @ 300BAR 1450RPM - XHDM500SS-GBKIT

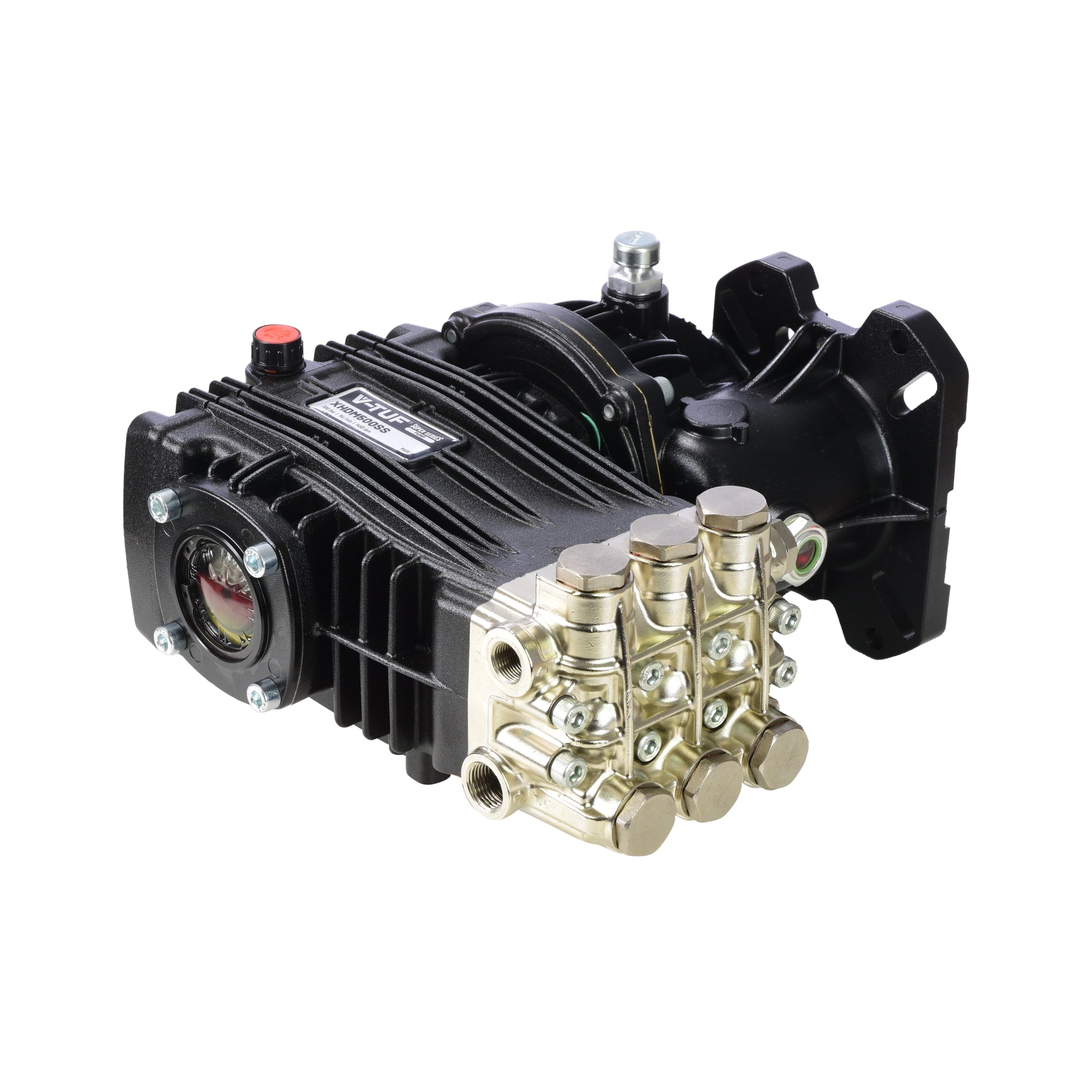

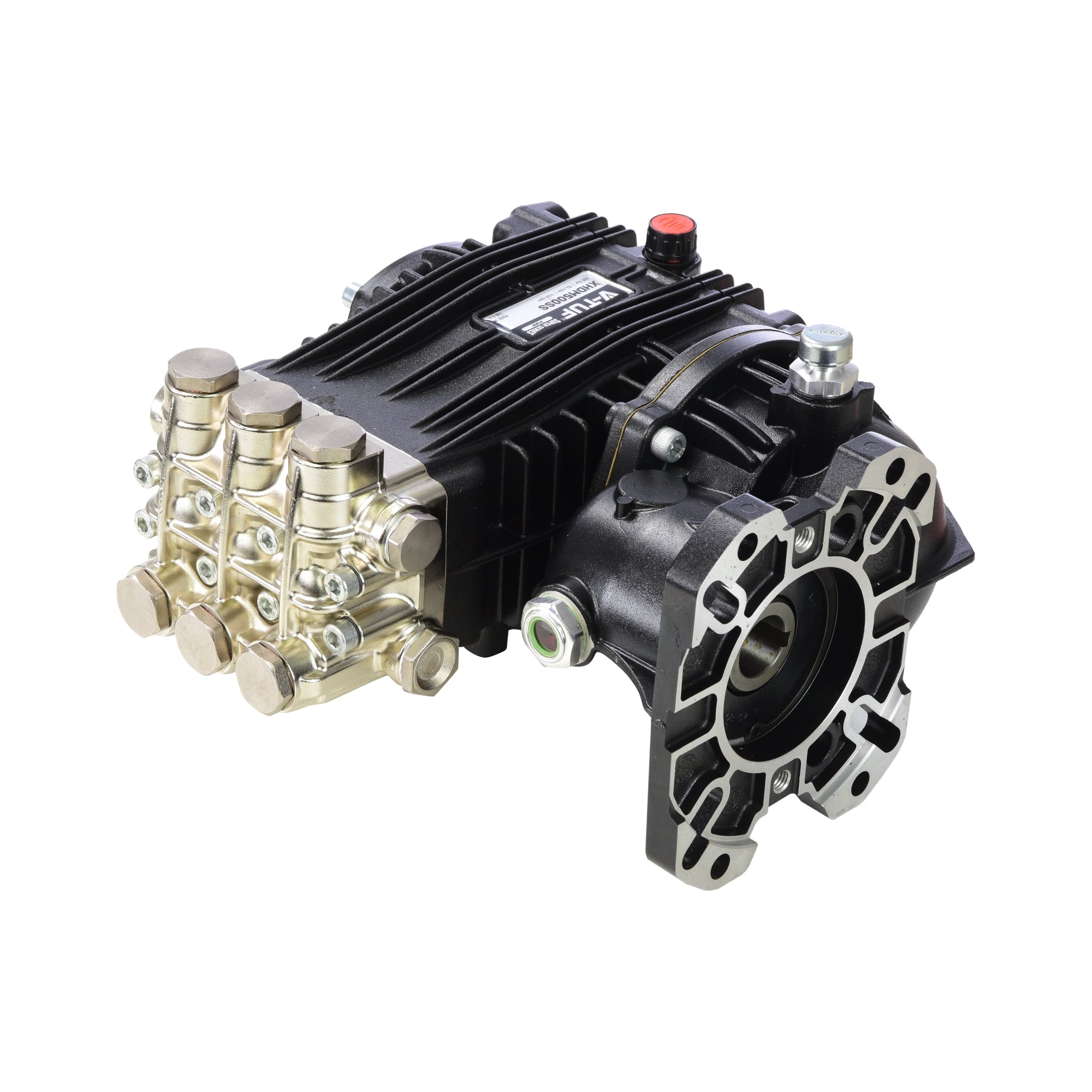

Pump & Gearbox - V-TUF Super Series XHDM500SSGB, 1" Hollow Shaft, 15 L @ 300 Bar 1450 RPM (XHDM500SS-GBKIT) is the XHDM500SS solid 24mm shaft pump pre-assembled with the XHDG500SS gearbox, delivering 15 L/min at 300 Bar at 1450 RPM with a 1" female hollow shaft input. Features toughened nickel-plated pump heads, a larger oil bath, extra cooling fins, and quieter running.

For: High-power engine-driven pressure washer installations requiring a 1" hollow shaft pump and gearbox at 300 Bar. 16HP required to run at full pressure. Sometimes used on TORRENT 3GB and TORRENT 3RGB pressure washers.

Key specifications:

• Flow: 15 L/min
• Pressure: 280-300 Bar (4100 PSI)
• Speed: 1450 RPM
• Input: 1" female hollow shaft

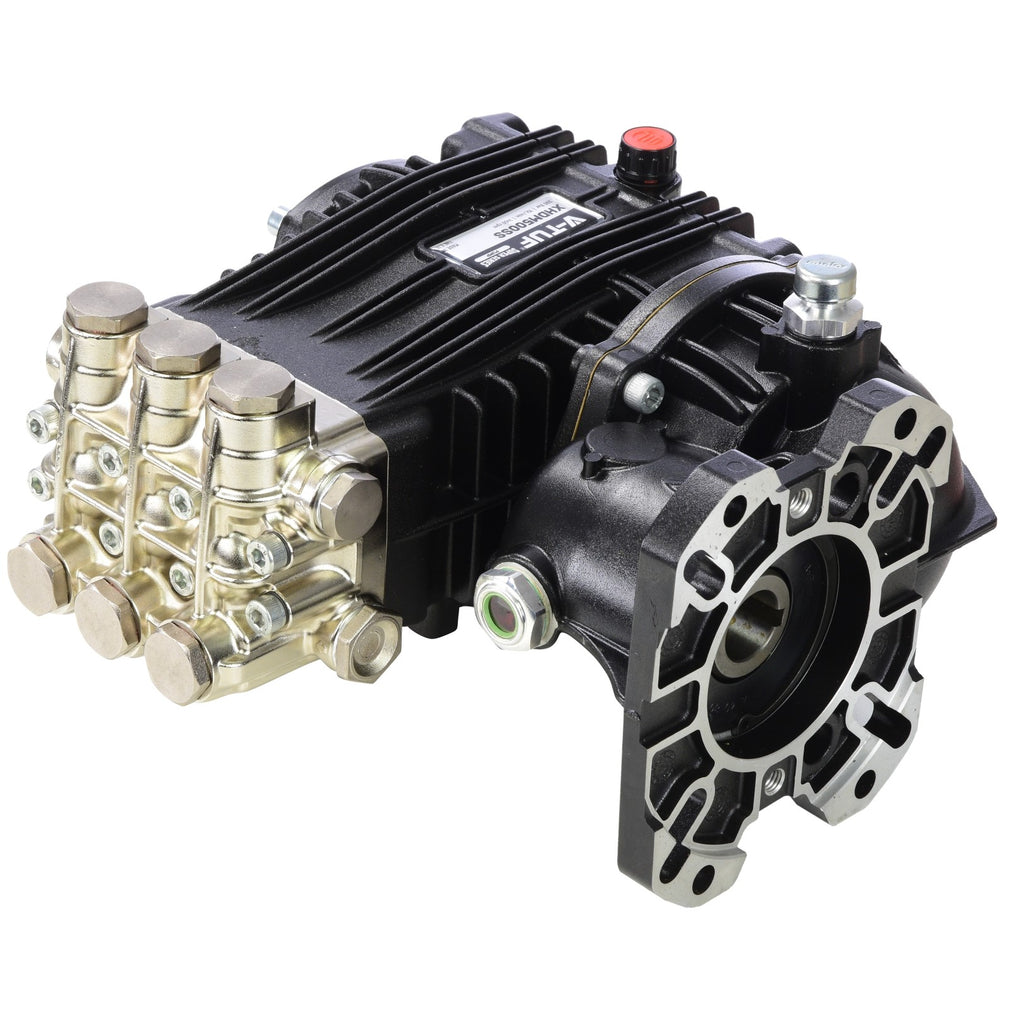

• Ports: 2x inlet 1/2" F BSP (one blanked), 2x outlet 3/8" F BSP (one supplied with blanking plug)
• Suitable replacement for: Interpump WS201, V-TUF VT301, AR RK 15.20H, V-TUF XHDM400

What's included:

• 1x XHDM500SS-GBKIT assembled pump and gearbox unit (unloader valve not included)

Important: Most mains water supplies cannot cope with 15.7 L/min — running on suction from a water butt or tank is advised if unsure. This pump is NOT supplied with an unloader valve and MUST be fitted with one before operation. Service kits: valve kit VTPKIT30, water seals VTPKIT28, pistons VTPKIT120571, oil PL500.

Safety — before powering the system:

1. The unloader valve MUST be set to minimum pressure.
2. The bypass port MUST be open.
3. Set the unloader to the required pressure, which MUST be less than both the unloader's maximum rated pressure and your equipment's maximum pressure (do not exceed 280 Bar / 4100 PSI).
4. Set the locking nuts so the running pressure and lock line pressure cannot be exceeded.

Caution: this is high pressure equipment. Failing to follow the above safety and set-up rules can cause serious equipment damage and injury — caps and joints can be blown clean out of their threads, creating dangerous projectiles. Call 01522 787978 if you need assistance.

Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.
