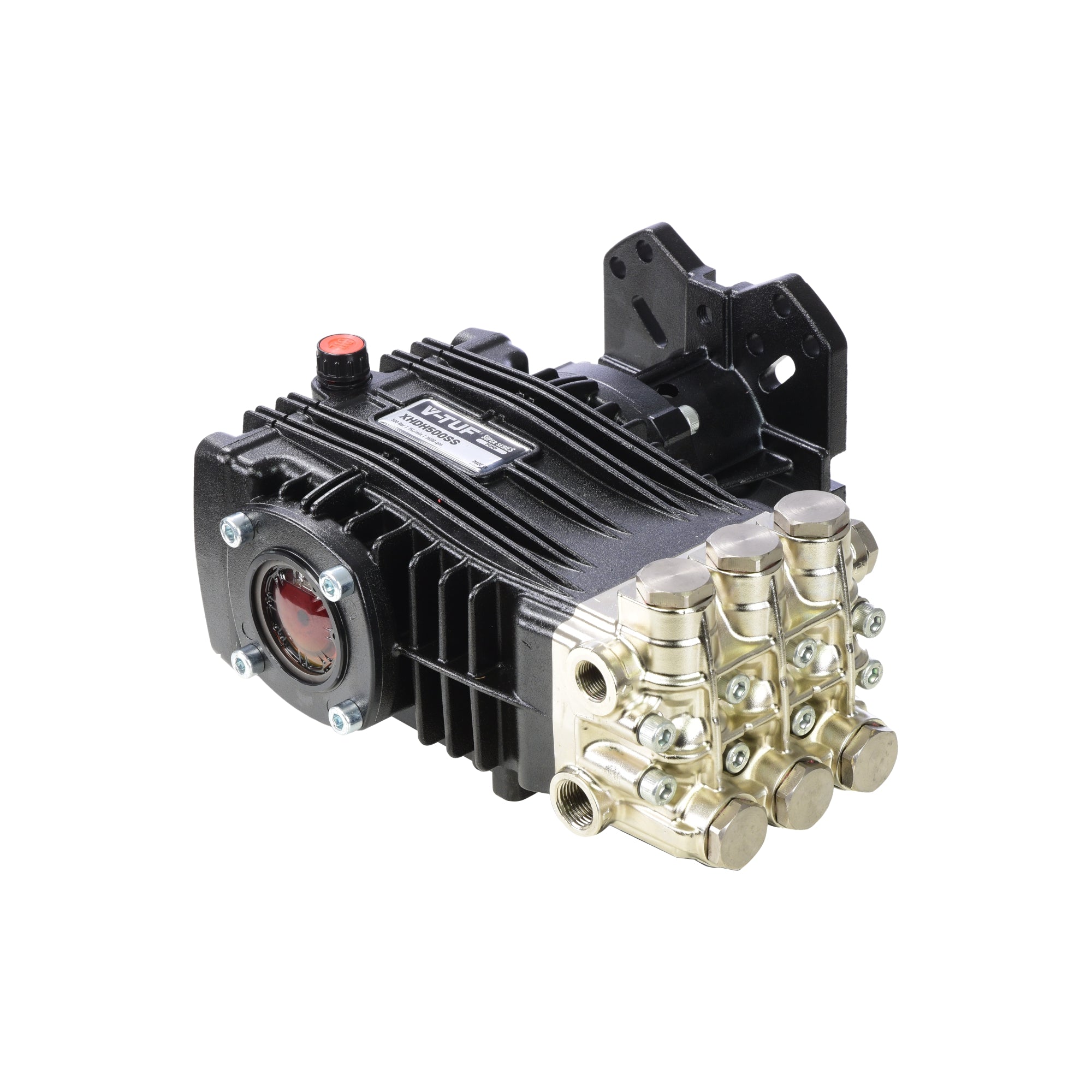

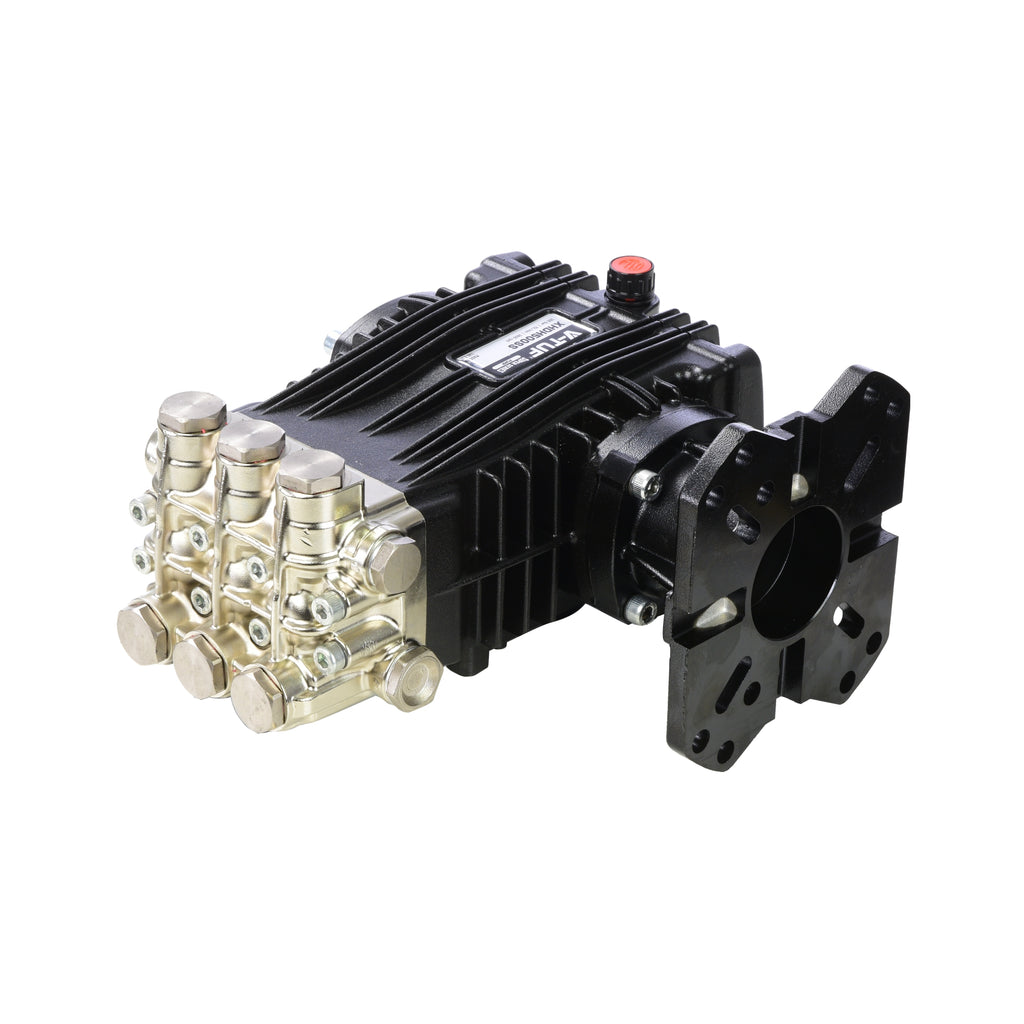

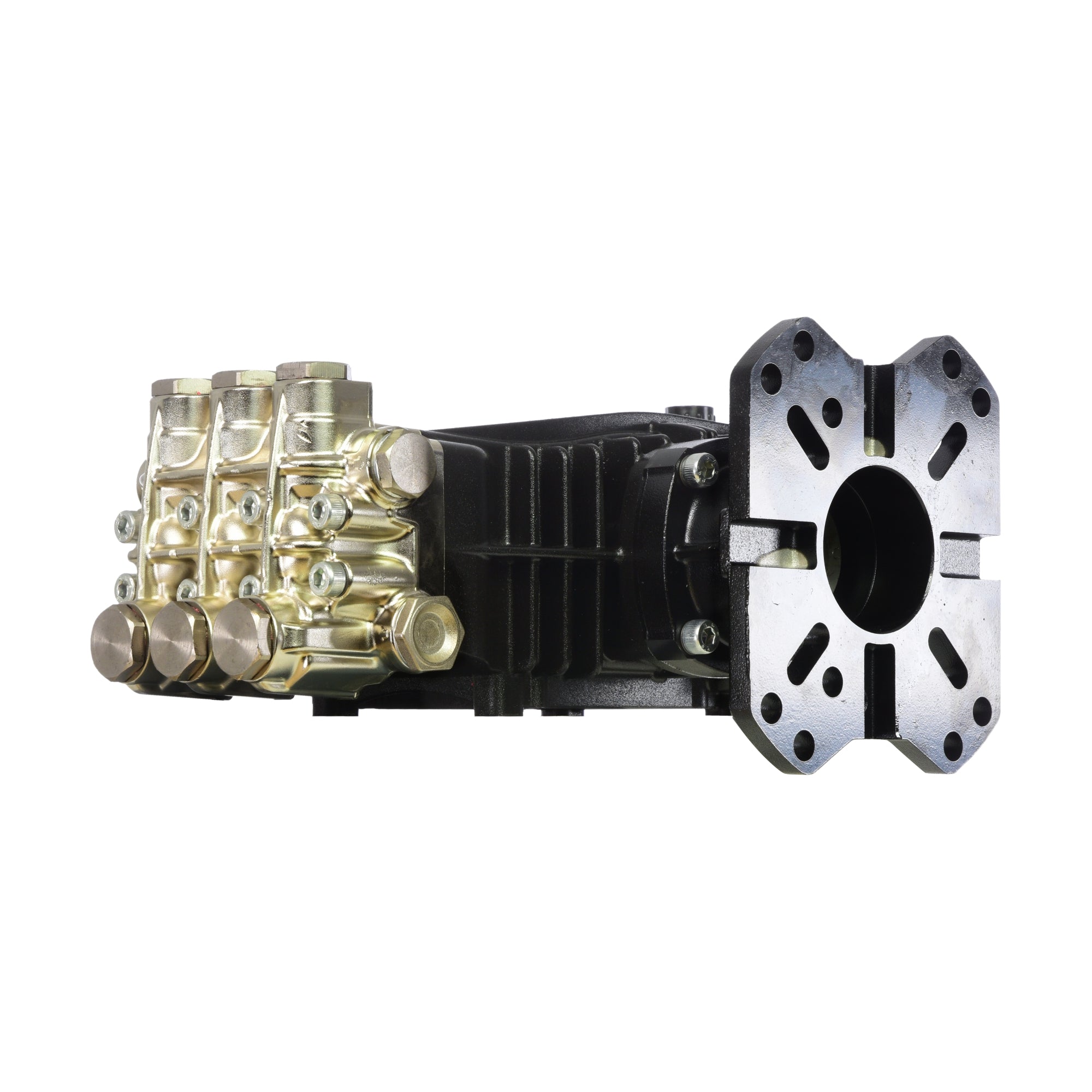

PUMP - V-TUF SUPER SERIES XHDH500SS 15L/MIN @ 300BAR 1" HOLLOW SHAFT - XHDH500SS
PUMP - V-TUF SUPER SERIES XHDH500SS 15L/MIN @ 300BAR 1" HOLLOW SHAFT - XHDH500SS
Key Features
- 15.1 L/MIN AT 300 BAR – uprated Super Series hollow shaft pump for high-pressure applications
- 1" HOLLOW SHAFT – bolts straight onto compatible engine crankshafts at 3400 RPM
- UPRATED 300 BAR VERSION – higher pressure alternative to the standard XHDH400 pump
- 4351 PSI MAX PRESSURE – built for demanding commercial and industrial cleaning applications
- GENUINE V-TUF PUMP – 2-year manufacturer's warranty, supplied from our Lincoln warehouse
Description
V-TUF XHDH500SS Super Series Hollow Shaft Pump 15.1 L/min @ 300 Bar 1" Hollow Shaft (XHDH500SS) is a V-TUF Super Series XHDH500SS hollow shaft direct-drive pump delivering 15.1 litres per minute (906 L/hr) at 300 Bar / 4351 PSI, running at 3400 RPM. An uprated 300 Bar version of the XHDH400 for high-pressure applications.
For: Engine-driven pressure washers and pump sets requiring a higher-rated 300 Bar pump with 1" hollow shaft direct drive.
Key specifications:
- Flow: 15.1 L/min (906 L/hr)
- Pressure: 300 Bar (4351 PSI)
- Speed: 3400 RPM
- Shaft: 1" hollow
What's included:
- 1x XHDH500SS hollow shaft pump
Important: Fill with V-TUF Pressure Lube before first run. Service kits: seals VTPKIT109, valves VTPKIT30. For 275 Bar version see XHDH400.
Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.
2-year manufacturer’s warranty. Genuine V-TUF, supplied from our Lincoln warehouse.
Specifications
- Working Pressure (Bar)
- 300
- Flow Rate (L/min)
- 15.1
- Shaft size
- 1" hollow
- Speed (RPM)
- 3400
