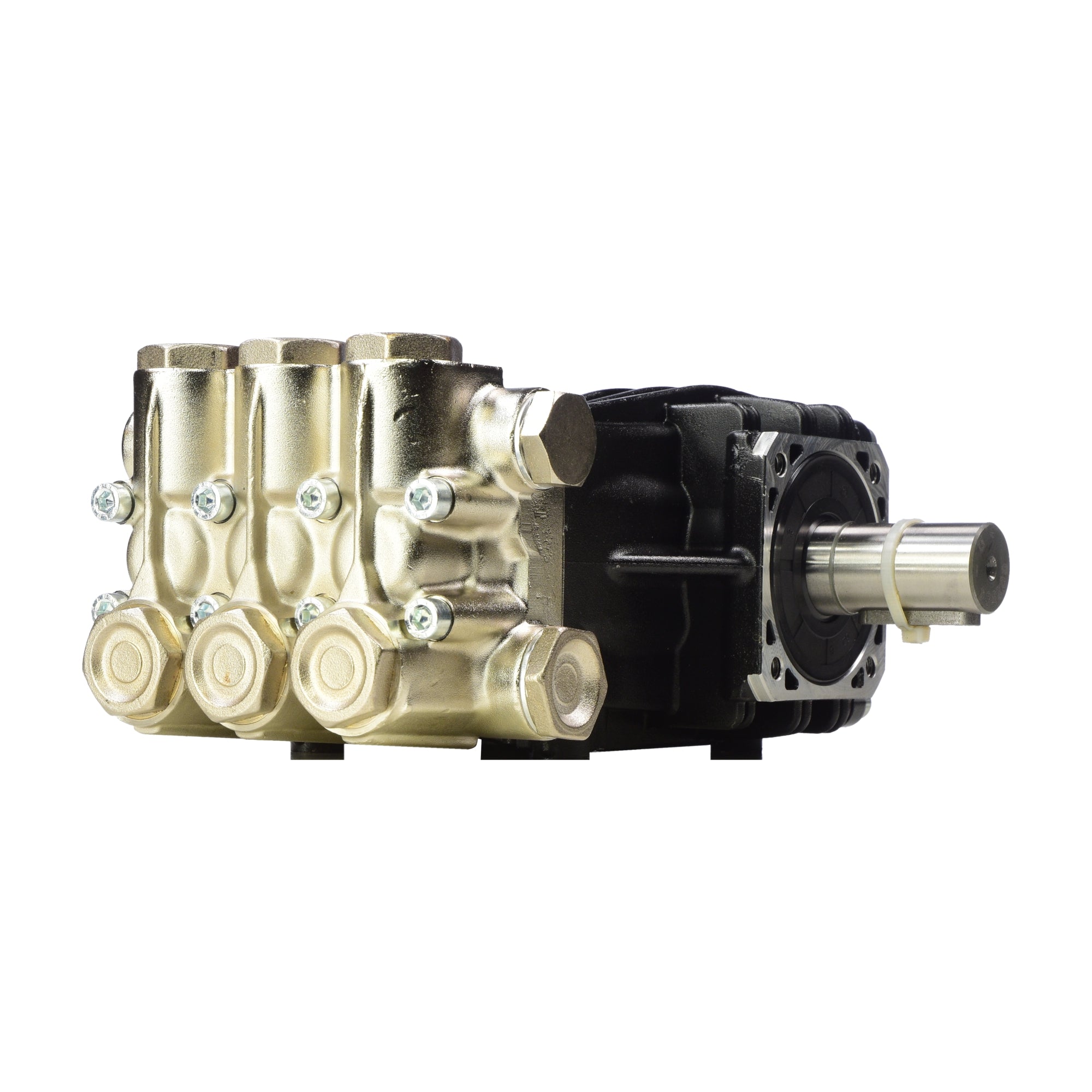

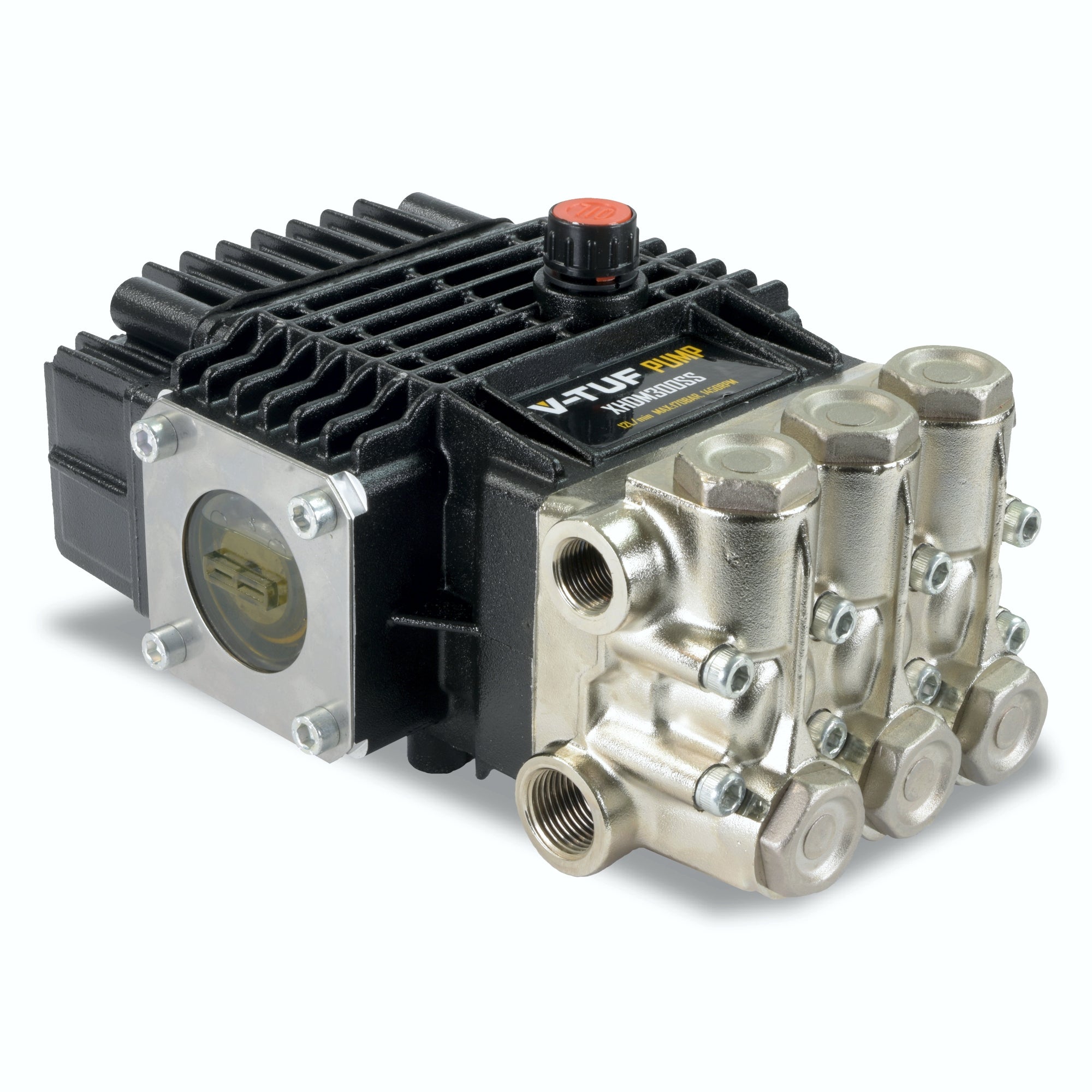

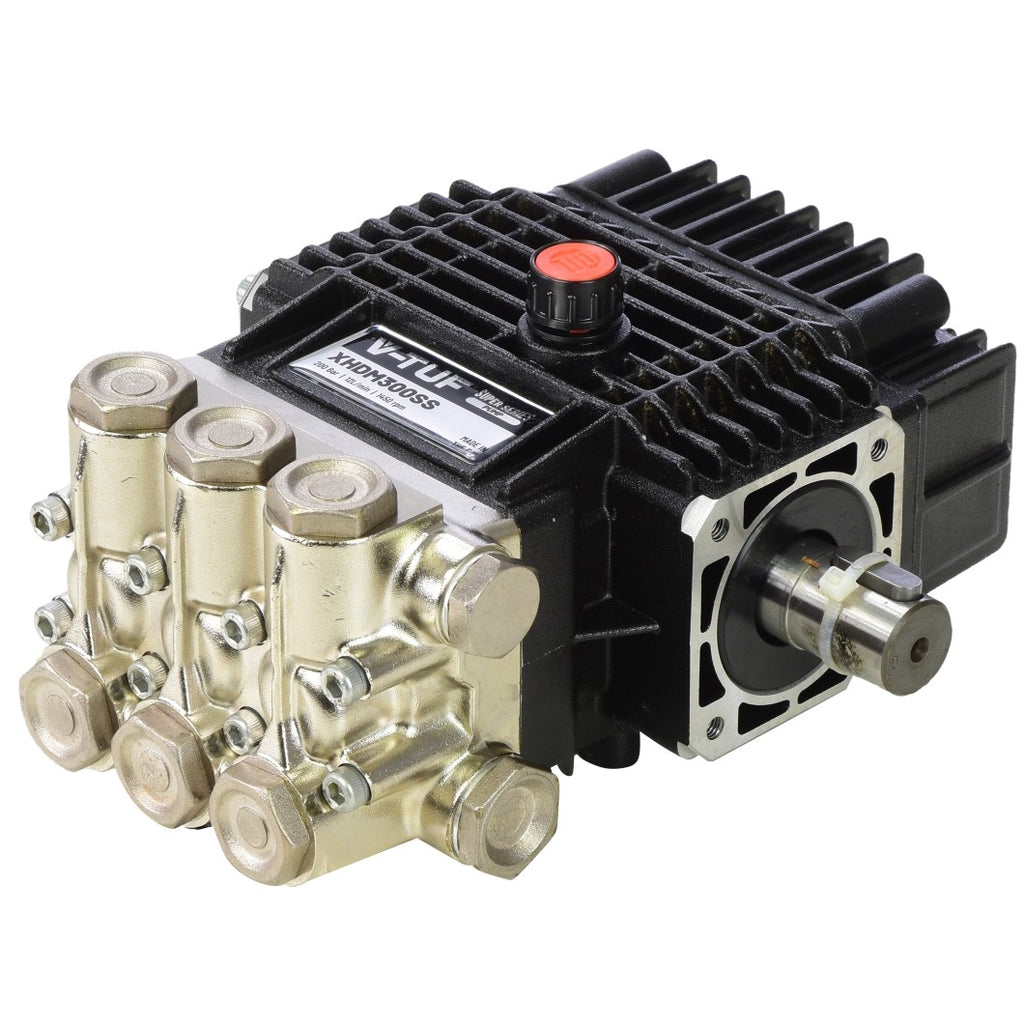

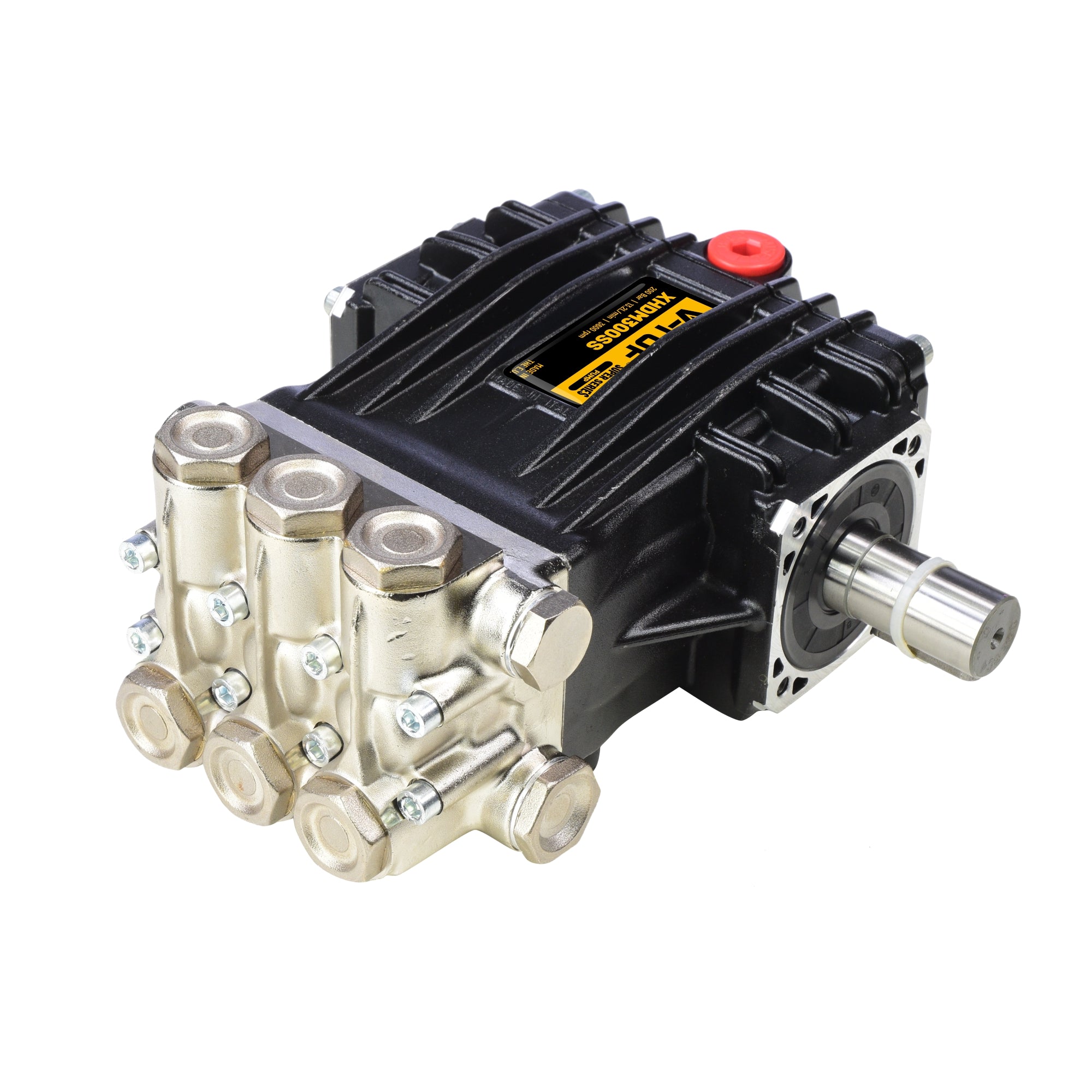

PUMP - V-TUF SUPER SERIES XHDM300SS 12L @ 200 BAR 1450 RPM 24mm MALE SHAFT - XHDM300SS

SUPER SERIES XHDM300SS Solid Shaft Pump - 12L/MIN @ 200BAR, 1450RPM, 24mm Solid Shaft.
1450 RPM ideal to be driven by: MH.243 240 volt motor or by the XHDG200 gearbox to connect to a engine. 6.5 HP required to run at full pressure: Super robust transmission system, 3-piston alternating volumetric pump for use on heavy use cleaning units and industrial systems to reduce downtime and running costs. SUPER Robustly made with a perfect balance of weight to ensure minimum fatigue on motor and gearbox mountings. NICKEL PLATED SOLID BRASS PUMP HEAD - Greater heat & weather resistance Pump body and cover in die-cast aluminium alloy with cataphoretic coating. Cathaphoresis painting is a surface treatment intended to give metal elements and other alloys a considerable resistance to chemical and environmental corrosion. Rear cover with oil drain outlet and oil sight glass. Cap with dipstick for oil level on body pump. Pistons driven by super series crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Common wearing parts (see image above) 6061E1 KIT134 Piston fastener (x3 sets) kit N601-327BSFW Pump head bolt & washer (1x of each) VTPKIT2 Valve kit (6x valves & o-rings) VTPKIT135 Water seal kit (for all 3 pistons) VTPSBR01 Oil filler & Breather plug VTPS120554 Piston kit (3x pistons) O.SEAL2A Piston Oil seals (x3) PL500 Pump lubricant (oil) SITE GLASS VTPSSGSS Direct alternative to the Interpump WS171 Pressure Washer Pump.
