V-TUF XHDM Super Series Solid Shaft Pump
Description

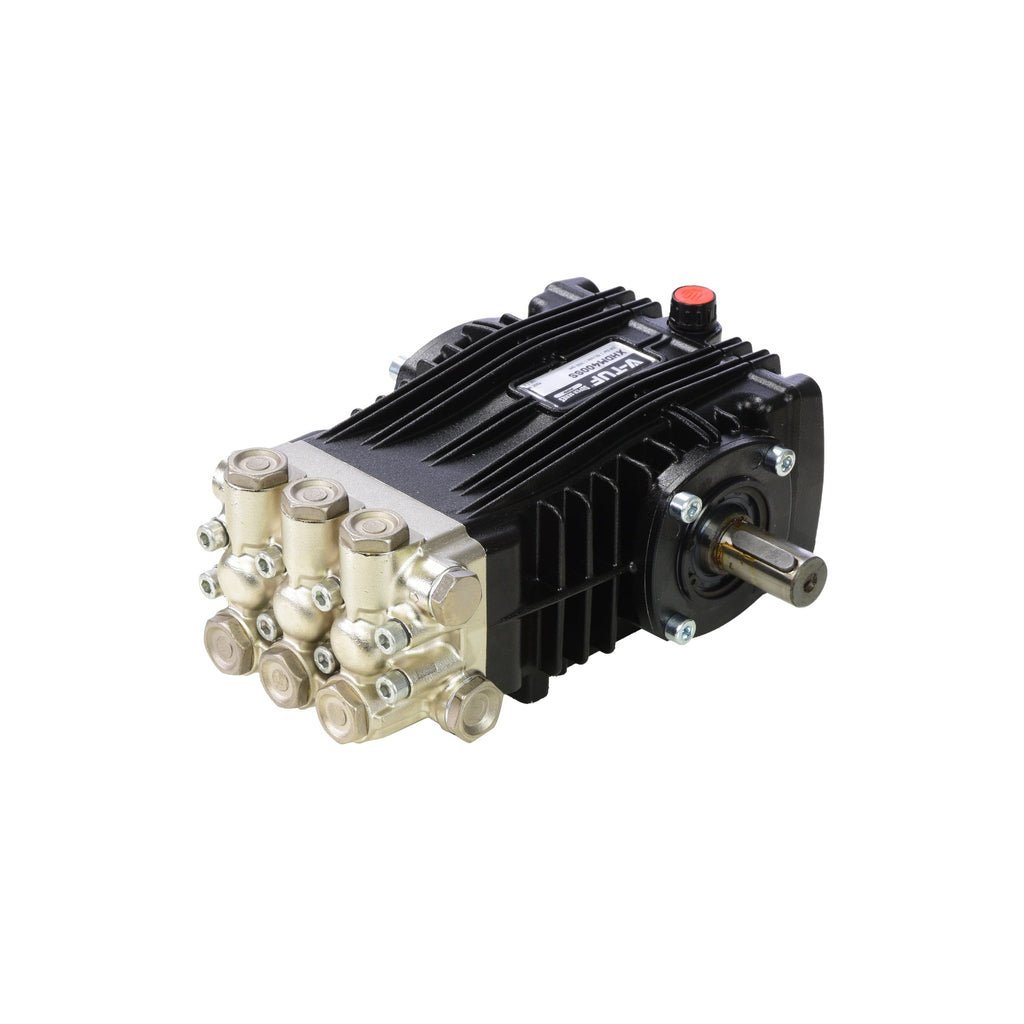

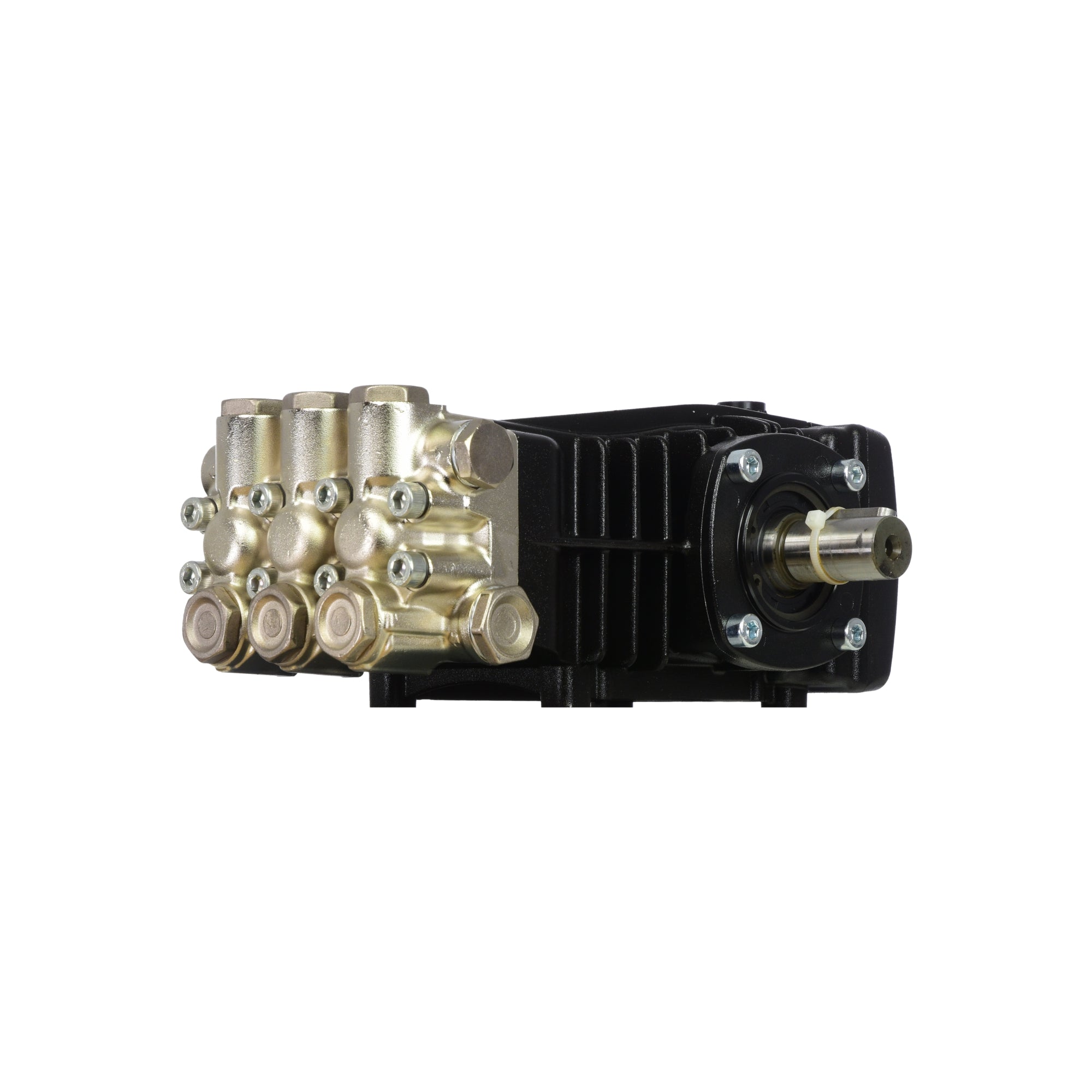

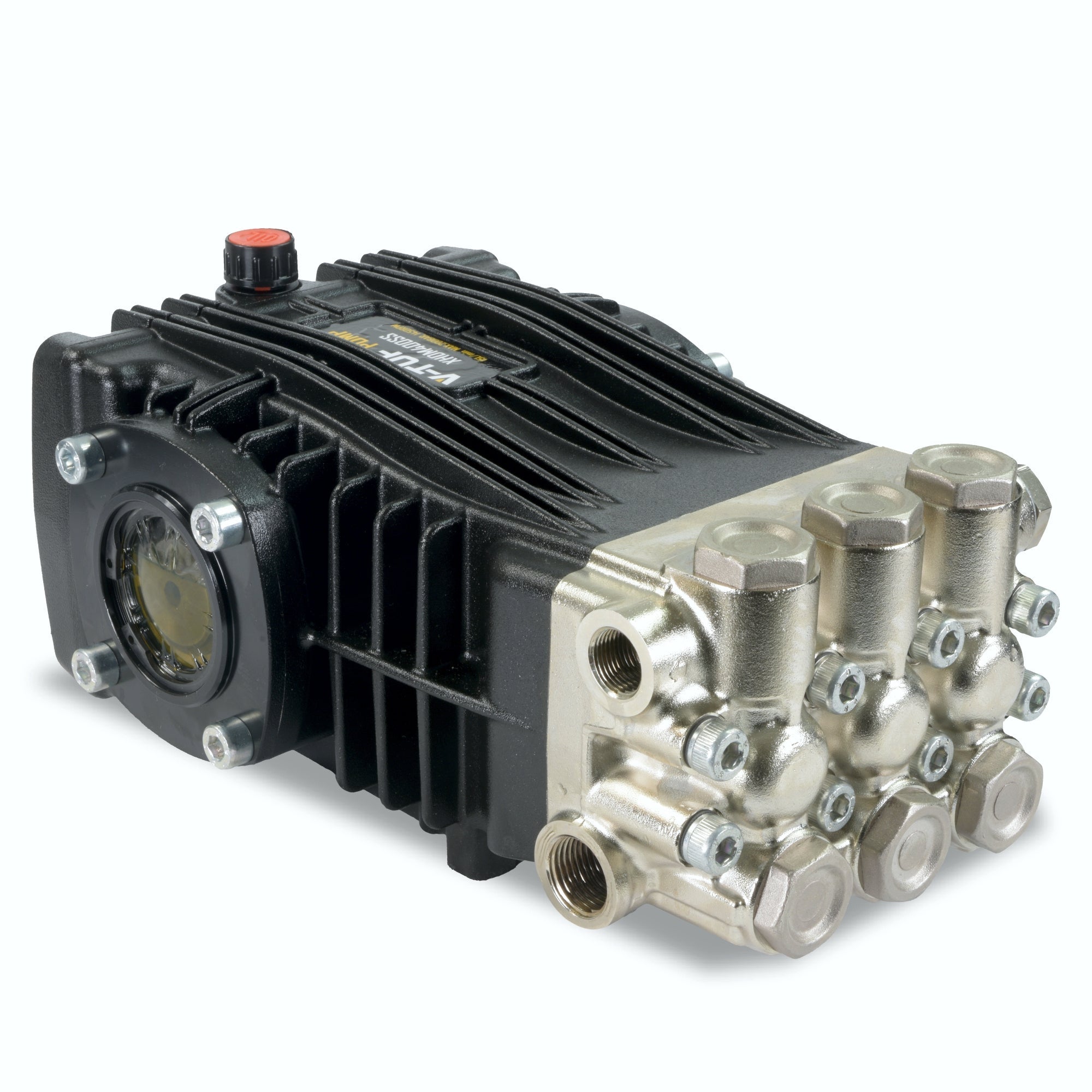

V-TUF XHDM Super Series Solid Shaft Pump (XHDM400SS / XHDM450SS / XHDM500SS) is the V-TUF SUPER SERIES heavy-duty industrial pump with 24mm solid shaft, available in three configurations delivering 15 L/min at 200 Bar, 15 L/min at 250 Bar, and 21 L/min at 250 Bar at 1450 RPM. Designed for direct coupling to electric motors and engine-driven systems, with a larger oil bath for reduced heat in continuous industrial operation.
For: Industrial pressure washing systems, hot water machine builds, pump replacement on electric and engine-driven systems operating at 1450 RPM.
Key specifications:
- XHDM400SS: 15 L/min @ 200 Bar, 1450 RPM, 24mm solid shaft
- XHDM450SS: 15 L/min @ 250 Bar, 1450 RPM, 24mm solid shaft
- XHDM500SS: 21 L/min @ 250 Bar, 1450 RPM, 24mm solid shaft
- Compatible motors: MH.4155 series and equivalent 1450 RPM motors
- Compatible gearbox: XHDG500SS
What's included:
- 1x XHDM SUPER SERIES pump in selected specification
Important: 1450 RPM operation only — do not run at higher RPM. Pair with XHDG500SS gearbox for engine-driven installations. Fill with V-TUF Pressure Lube (PL500) before first use.
Support: See the XHDM Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.
2-year manufacturer’s warranty. Genuine V-TUF, supplied and serviced from our Lincoln warehouse.
