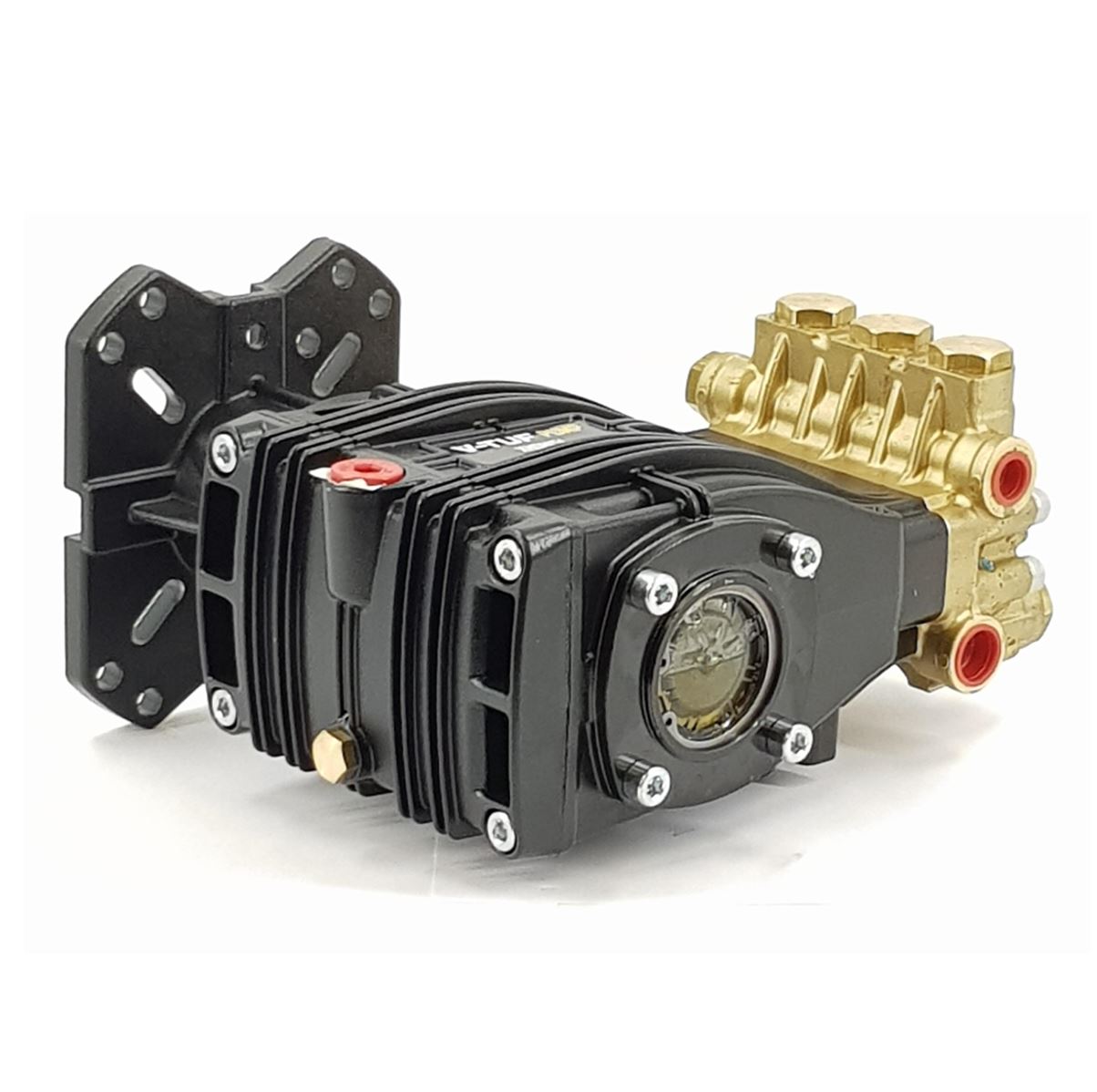

V-TUF XHDH400 High-Pressure Pump | 15.1L @ 275 Bar | 1" Hollow Shaft
V-TUF XHDH400 High-Pressure Pump | 15.1L @ 275 Bar | 1" Hollow Shaft
Key Features
- 15.1 L/MIN AT 275 BAR – commonly fitted to V-TUF TORRENT 3 and TORRENT 5 engine-driven pressure washers
- 1" HOLLOW SHAFT – bolts straight onto compatible 1" horizontal keyway engine crankshafts
- 3400 RPM DIRECT DRIVE – no gearbox needed, couples straight to the engine shaft
- 4015 PSI MAX PRESSURE – built for demanding commercial and industrial cleaning applications
- GENUINE V-TUF PUMP – 2-year manufacturer's warranty, supplied from our Lincoln warehouse
Description
V-TUF XHDH400 Hollow Shaft Pump 15.1 L/min @ 275 Bar 1" Hollow Shaft (XHDH400) is a V-TUF XHDH400 hollow shaft direct-drive pump delivering 15.1 litres per minute at 275 Bar / 4015 PSI, running at 3400 RPM. Commonly found on V-TUF TORRENT 3 and TORRENT 5 engine-driven pressure washers. Fits directly onto a 1" horizontal keyway engine shaft.
For: Engine-driven pressure washers and pump sets requiring a XHDH400 hollow shaft pump, including TORRENT 3 and TORRENT 5 pump replacements.
Key specifications:
- Flow: 15.1 L/min
- Pressure: 275 Bar (4015 PSI)
- Speed: 3400 RPM
- Shaft: 1" hollow
What's included:
- 1x XHDH400 hollow shaft pump
Important: Fill with V-TUF Pressure Lube before first run. For 300 Bar super series version see XHDH500SS. Service kits: seals SEAL4, pistons PISTON4, valves VTPKIT30.
Support: See the Pump Spare Parts page, or call our Lincoln service team on 01522 787978.
2-year manufacturer’s warranty. Genuine V-TUF, supplied from our Lincoln warehouse.
Specifications
- Working Pressure (Bar)
- 275
- Flow Rate (L/min)
- 15.1
- Shaft size
- 1" hollow
- Speed (RPM)
- 3400
