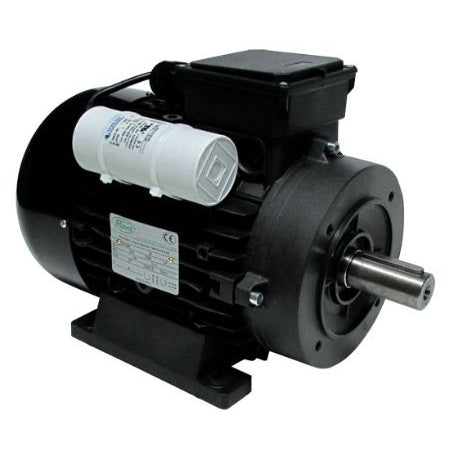

V-TUF Electric Motor - Low Rev. Solid Shaft 3HP
V-TUF Electric Motor - Low Rev. Solid Shaft 3HP
Key Features
- 3HP / 2.2KW ELECTRIC MOTOR – available in 240V (MS.243) or 110V (MS.113) site voltage
- 28MM SOLID SHAFT WITH 8MM KEYWAY – direct fit for belt, coupling, or direct-drive pump connection
- 1450 RPM LOW-REV DESIGN – reduces wear for longer service life in continuous use
- 100L FRAME SIZE – industry-standard mounting for easy integration into pump set builds
- GENUINE V-TUF MOTOR – supplied from our Lincoln warehouse, hollow shaft version available as MH.243
Description
V-TUF Electric Motor 3HP Solid Shaft 240V or 110V (MS.243 / MS.113) is an industry-proven 3HP / 2.2kW solid shaft motor at 1450 RPM, available in 240v and 110v, with a 28mm solid shaft, 8mm keyway, and 100L frame. Designed for direct coupling to V-TUF and compatible XHDM series pumps via a gearbox or coupling.
For: Fixed electric pressure washer pump set builds requiring a solid shaft motor for belt, coupling, or direct drive pump connection.
Key specifications:
- Power: 3HP / 2.2kW
- Speed: 1450 RPM (4-pole)
- Shaft: 28mm solid with 8mm keyway
- Frame: 100L
- Voltages: 240v (MS.243) / 110v (MS.113)
What's included:
- 1x solid shaft motor in selected voltage
Important: Ensure coupling or drive system matches 28mm shaft with 8mm keyway. Hollow shaft version available as MH.243.
Support: See the Engine Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
Specifications
- Shaft size
- 28mm solid
- Speed (RPM)
- 1450
