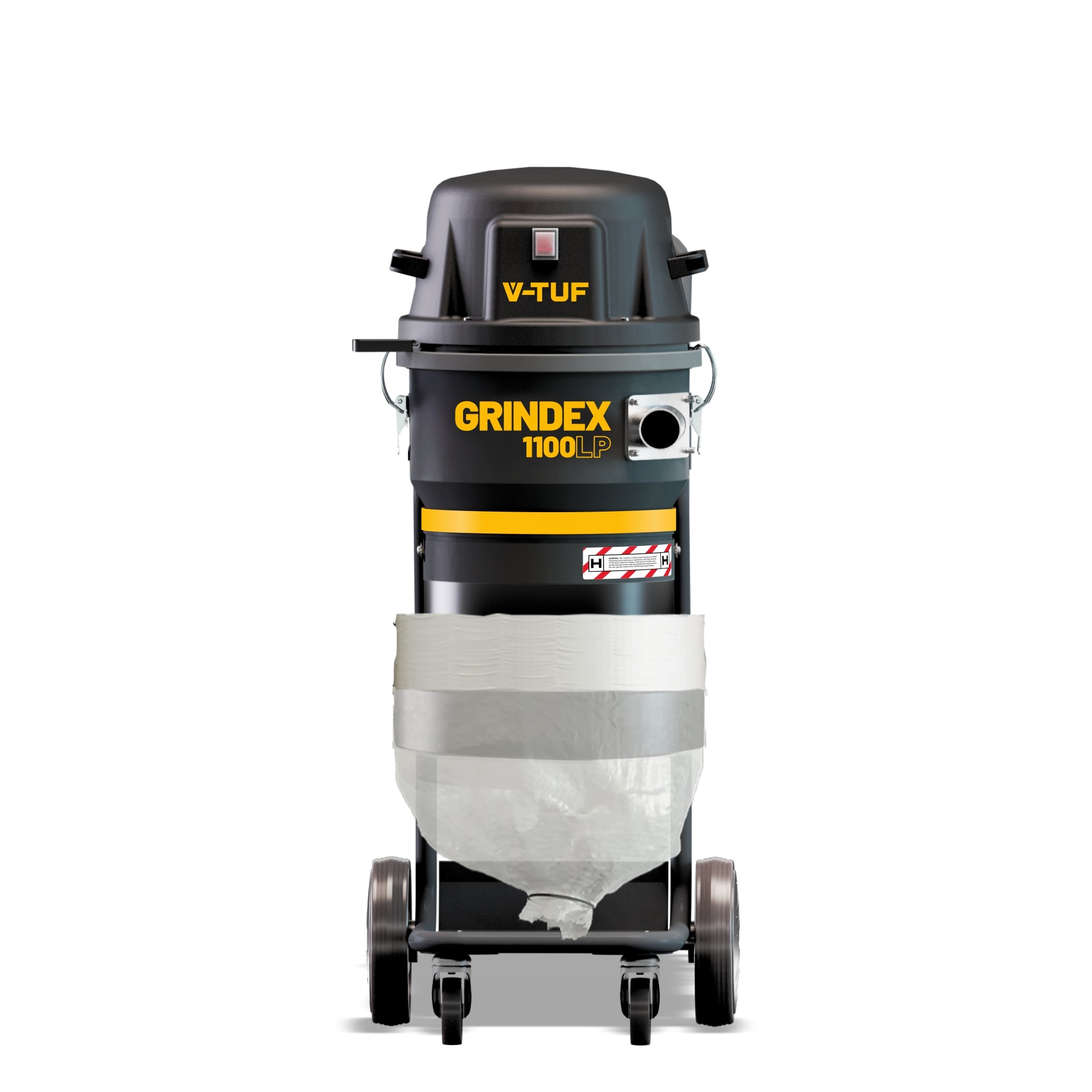

V-TUF GRINDEX1100LP M-Class Industrial Dust Extractor - 20L, 1150W - 110V

Continuous, compact fine-dust extraction built for demanding industrial and construction environments.

V-TUF GRINDEX1100LP (SKU: GRINDEX1100LP-110) is a compact M-Class industrial dust extractor with a 20L capacity, a HEPA+PTFE cartridge filter, and manual reverse-flow filter cleaning for continuous operation.

For: Contractors, facilities teams and manufacturers who need reliable, compact fine-dust extraction for grinding, cutting, sanding and general construction or workshop dust.

Key Specifications:

• M-Class | 20L capacity | 1150W motor | 110V
• Airflow: 200 m³/h | Max depression: 250 mBar | Suction inlet: Ø50mm tangential
• Primary filter: HEPA + PTFE cartridge, 10,000cm² filtering surface
• Filter cleaning: Manual reverse-flow (pulse)
• Optional secondary filter: HEPA H14, 99.995% @ 0.12μm, 11,200cm²
• Collection system: Longopac® bag | Filter chamber: Ø330mm
• Weight: 25kg | Dimensions: 480 x 440 x 1040mm (L x W x H)

Important: Not suitable for vacuuming liquids. On 3-phase 110V models, confirm the motor rotates clockwise before use; if rotation is reversed, disconnect from the power source and swap one phase cable in the plug. Not for use in explosive atmospheres or where hazardous gases may be present.

Warranty: 1-year manufacturer's warranty. Genuine V-TUF, supplied from our Lincoln warehouse.

Where This Machine Is Used:

• Construction
• Facilities Management
• Manufacturing
• Cleaning Trade

Legislation That Applies:

COSHH Regulations 2002 applies to all dust-generating machines; operators must assess and control exposure to hazardous substances including fine dust.

CDM 2015 applies to this machine when used on construction sites, setting out duties for managing health and safety risks including dust control.

HSE EH40 Workplace Exposure Limits set the maximum permitted exposure to airborne substances such as silica dust; M-Class extraction is the minimum standard for many of these tasks.

PUWER 1998 applies to this machine when used in commercial or industrial settings, requiring it to be suitable, maintained and used safely.

If used for mould remediation in social housing, Awaab's Law may also apply — this M-Class model is suitable for that use case.

Further Reading:

• M-Class or H-Class: why it depends on what the building is made of
• Silica dust on construction sites: what the regulations actually require

Support:

Need help? See our GRINDEX1100LP troubleshooting guide or find genuine GRINDEX1100LP spare parts. Call us on +44 (0)1522 787978 or email enquiries@v-tuf.com.
