SWIVEL HIGH PRESSURE STAINLESS STEEL 90° 1/4M F - W1.501
£52.30 Ex. VAT
£62.76 Inc. VAT
Sale price
£52.30
Regular price
£0.00
Ex. VAT
£62.76 Inc. VAT
Skip to product information
10 left
SWIVEL HIGH PRESSURE STAINLESS STEEL 90° 1/4M F - W1.501
Code: W1.501
£52.30 Ex. VAT
£62.76 Inc. VAT
Regular price
£0.00
Sale price
£52.30 Ex. VAT
£62.76 Inc. VAT
Customise with optional extras:
Choose your triggers lances nozzles

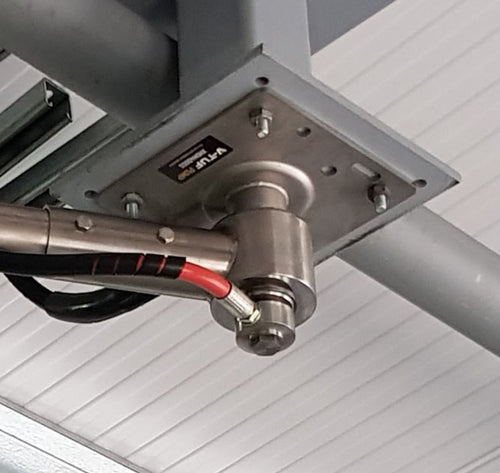

BOOM BRACKET CEILING MOUNT 360O Rotation - W1.100
£259.94
Ex. VAT
£311.93
Inc. VAT
BOOM BRACKET WALL MOUNT 180O Rotation - W1.200
£370.72
Ex. VAT
£444.86
Inc. VAT
Not sure what you need for the job?
Give our UK based support team a call on 01522 787 978, and we will walk you through step by step. Alternatively you can send us a message. We will respond between 8am to 4.30pm; Monday to Friday.
Description

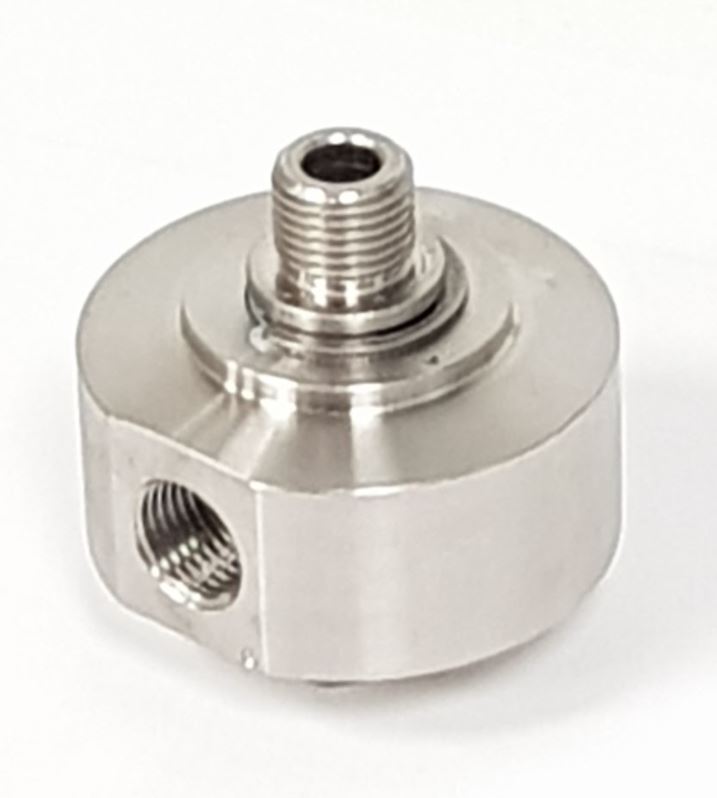

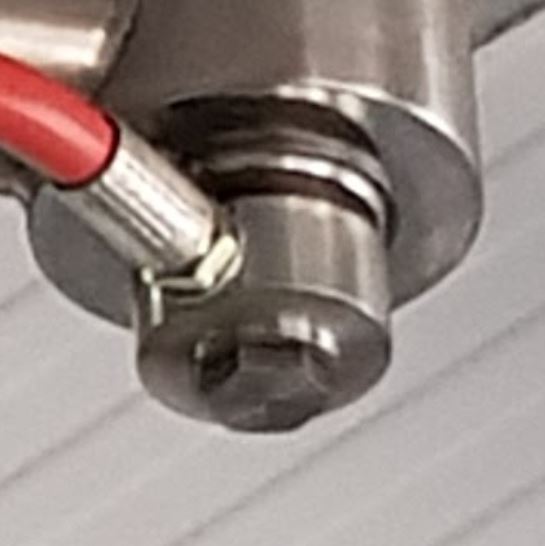

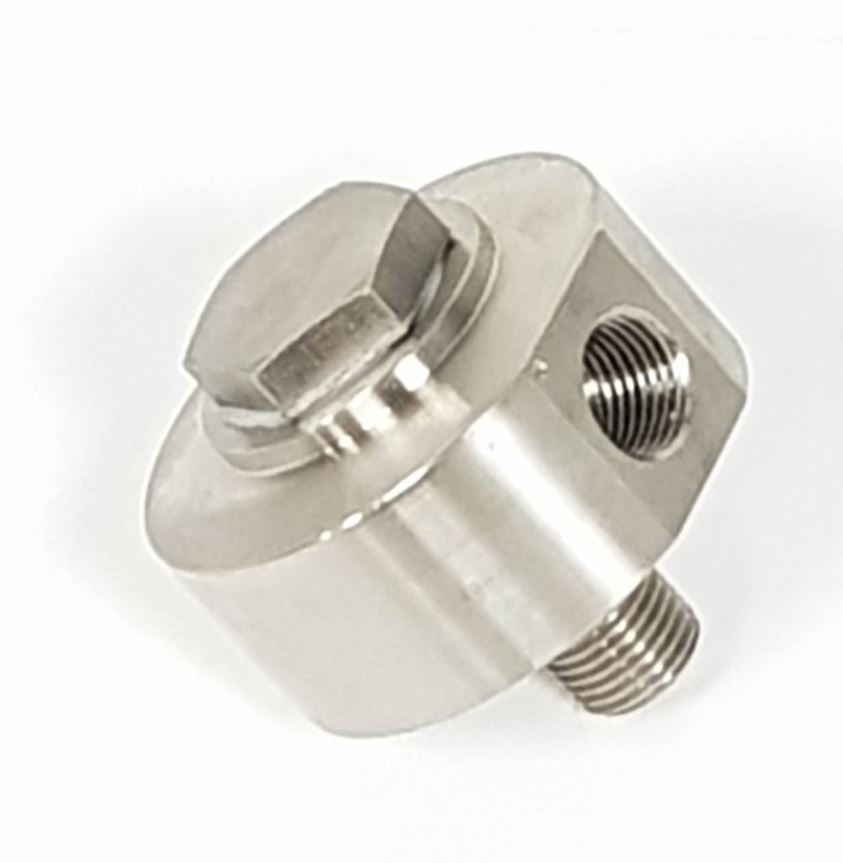

HP Swivel 360° 90° Stainless Steel 1/4"M x 1/4"F 280 Bar (W1.501) is a stainless steel 90° high pressure swivel rated to 280 Bar, 40 l/min, and 95°C with 1/4" BSP male inlet and 1/4" BSP female outlet. Spare replacement 90° swivel for wash bay boom systems.
For: Wash bay boom systems and HP hose assemblies requiring a 280 Bar 90° swivel joint.
Key specifications:
- Type: 360° rotation, 90° body HP swivel
- Material: Stainless steel
- Max pressure: 280 Bar
- Max flow: 40 l/min
- Max temperature: 95°C
- Connections: 1/4" BSP male x 1/4" BSP female
What's included:
- 1x W1.501 90° HP swivel
Important: For straight version see W1.500. Use PTFE tape on BSP male thread.
Support: See the Wash Bay Equipment Spare Parts page for self-service help, or call our Lincoln service team on 01522 787978.
Genuine V-TUF part, supplied from our Lincoln warehouse.
