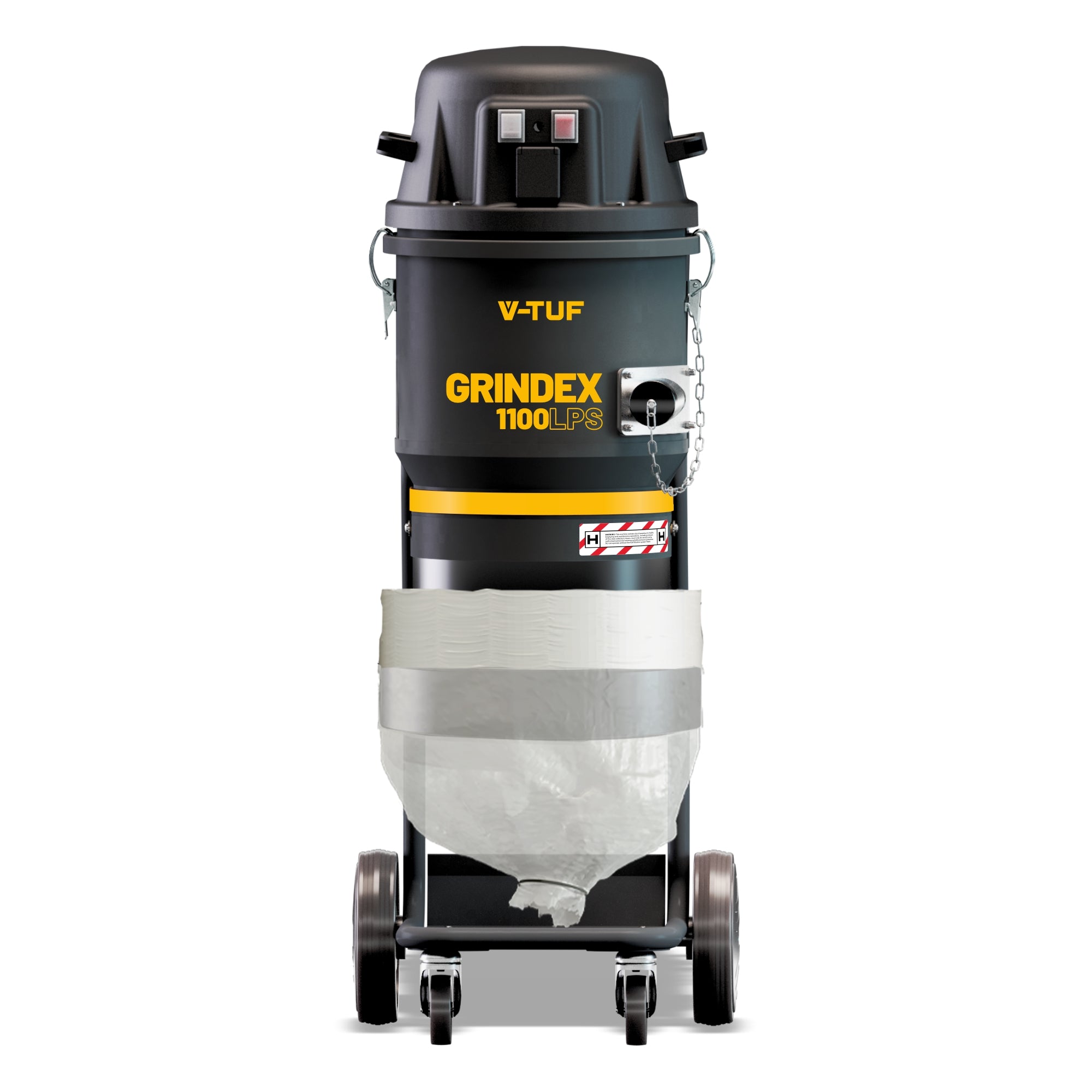

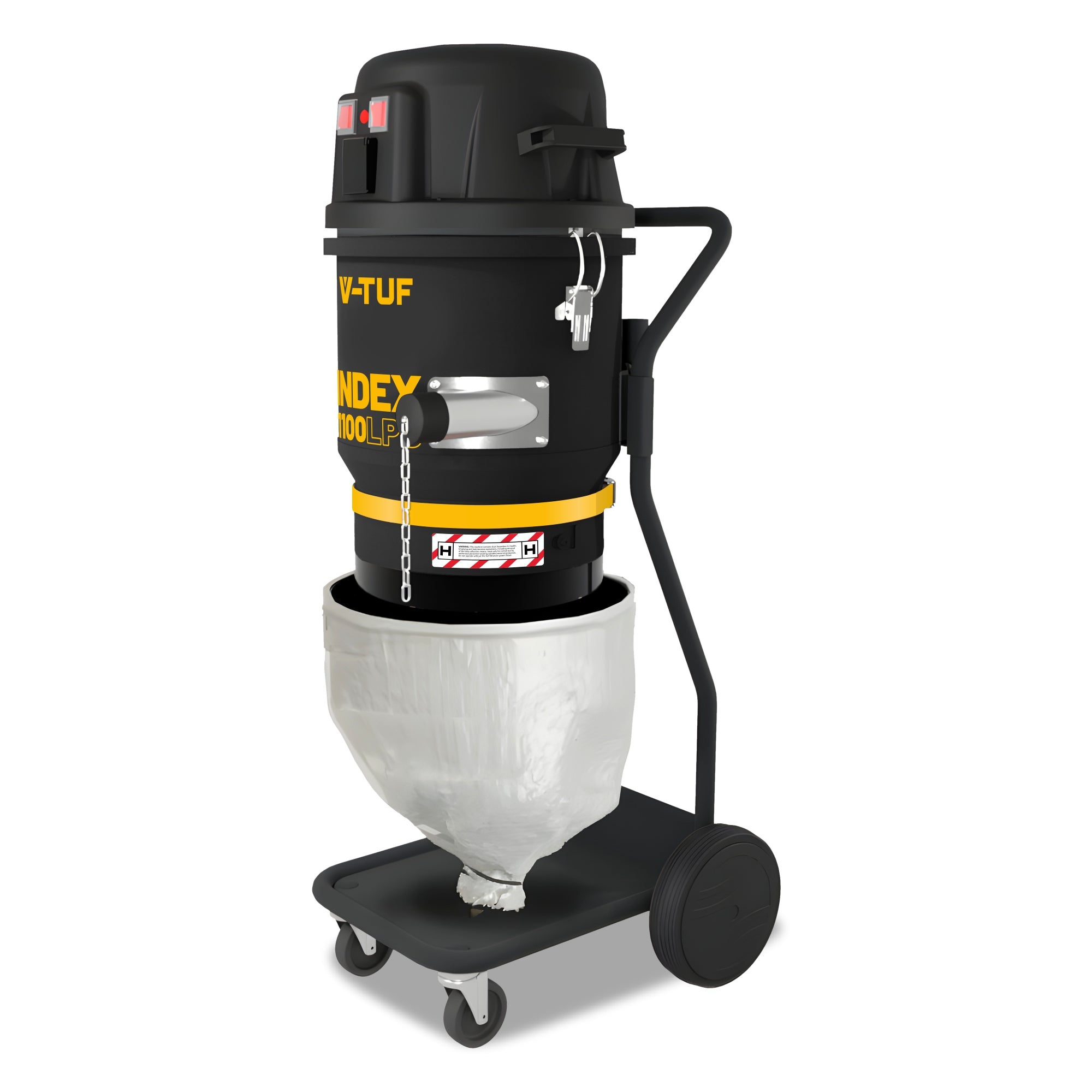

V-TUF GRINDEX1100LPS H-Class Industrial Dust Extractor - 25L, 1100W - 240V

Certified H-Class protection for the finest, most hazardous dust on site.

V-TUF GRINDEX1100LPS-240 is a compact H-Class industrial dust extractor with automatic reverse-flow filter cleaning, built to keep operators safe when vacuuming very fine, hazardous dust.

For: Contractors, tradespeople and industrial operators who need certified H-Class extraction when grinding, drilling, cutting or demolishing materials that release fine, hazardous dust.

Key Specifications

• Power: 1100W | Voltage: 240V, 50/60Hz | Amperage: 4.8A
• Airflow: 200 m³/h | Max vacuum (depression): 250 mBar
• Suction inlet: Ø50mm tangential
• Capacity: 25L, Longopac® bagged collection system
• Dimensions (L×W×H): 48 × 44 × 104 cm | Weight: 25 kg
• Filter chamber diameter: Ø330mm
• Primary filter: HEPA + PTFE cartridge, 10,000cm² filtering surface
• Filter cleaning: Automatic reverse-flow system, differential-pressure triggered
• Optional secondary filter: HEPA H14 (99.995% @ 0.12μm), 11,200cm² surface
• Power tool socket: max 2200W, tool-start (PTO) system
• Class: H-Class standard

Important

• Not suitable for vacuuming liquids.
• Check the machine is connected to a power source matching the voltage shown on the rating plate before use.
• Do not use in confined spaces without adequate fresh air, and never cover the machine during use.
• Never vacuum explosive, incendiary or corrosive substances or vapours; only vacuum damped cigarette butts.
• Check the cartridge filter is fitted and in good condition before vacuuming toxic substances.

Warranty
1-year manufacturer's warranty. Genuine V-TUF, supplied from our Lincoln warehouse.

Where This Machine Is Used

• Construction
• Manufacturing & Engineering
• Facilities Management
• Healthcare
• Cleaning Trade

Legislation That Applies

COSHH Regulations 2002: As a dust-generating machine, the GRINDEX1100LPS supports compliance with the Control of Substances Hazardous to Health Regulations, helping control exposure to hazardous fine dust at source. Learn more.

CDM 2015: On construction sites, the Construction (Design and Management) Regulations 2015 place duties on contractors to manage dust risk — H-Class extraction is a recognised control measure. Learn more.

HSE EH40 Workplace Exposure Limits: H-Class extraction helps operators stay within HSE EH40 workplace exposure limits for hazardous dust and substances. Learn more.

Control of Asbestos Regulations 2012: As an H-Class machine, the GRINDEX1100LPS meets the extraction standard required under CAR 2012 for work involving asbestos-containing materials. Learn more.

PUWER 1998: Suitable for use as compliant work equipment under the Provision and Use of Work Equipment Regulations 1998 in commercial and industrial settings. Learn more.

ICRA: Where used inside healthcare or hospital environments, H-Class extraction supports compliance with Infection Control Risk Assessment requirements. Learn more.

Awaab's Law: Where used for mould remediation in social housing, H-Class extraction is a recognised control measure under Awaab's Law. Learn more.

Further Reading

• M-Class or H-Class: why it depends on what the building is made of
• Silica dust on construction sites: what the regulations actually require
• Asbestos in construction: what CAR 2012 requires for contractors working in pre-2000 buildings
• ICRA in healthcare construction: what contractors working inside hospitals need to know

Support

Having an issue? Use our GRINDEX1100LPS Troubleshooting Guide to diagnose and fix common faults. Need a filter or collection bag? See GRINDEX1100LPS Spare Parts (pricing being finalised — contact us directly to order). For anything else, visit the V-TUF Support Hub.
